Optical Light Source (OLS)

The unit can be equipped with an optional Optical Light Source (OLS) to use in conjunction with any OPM to measure link loss. The OLS radiates continuously or in pulses with modulation.

To see the most recent OLS specifications, go www.veexinc.com.



PROTECT YOUR EYES!

Never look directly into the OLS test port. The laser radiation emitted can be harmful to your eyes.



OLS Setup



Using the Optical Light Source

  1. Make sure that the Optical Light Source option is installed on the test unit.
  2. Connect a patchcord between the OLS and an OPM test port, then power on the unit.

The Fiber Main Menu is loaded by default.

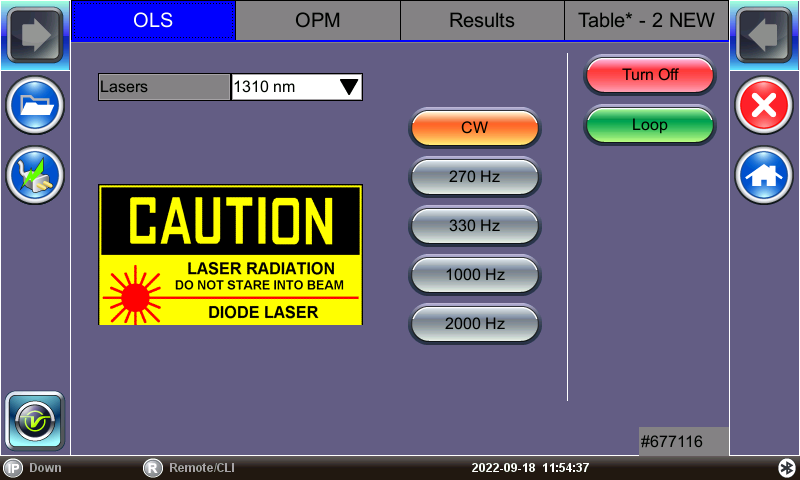

  1. . Select Optical Light Source from the main menu. The OLS screen appears.



  1. Select the operation mode for the test, then tap Turn On.

  • CW (Continuous Wave): Select to continually measure level, loss, and reflectance in optical components.

  • 270 Hz, 330 Hz, 1000 Hz, 2000 Hz (Pulse): Select this option to send intermittent light pulses.

  1. When testing is complete, tap Laser OFF to power off the OLS, and then disconnect the cable and replace the port cover.
