FX120 Series



Use this guide to learn how to operate the FX120 Series PON Analyzer Test Sets.

FX120: The FX120 is an all-in-one advanced PON analyzer with a native RJ45 port and an SFP+ cage to support Layer 4+ testing. Ideal for service technicians tasked with service activation and resolving complaints, the FX120 monitors activation process by displaying downstream/upstream power levels as well as OLT/ONT IDs and status and TC-Sync. Certify QoE using optional Speed Test and V-PERF to check internet connectivity and speed up to 10 Gbps. Optional end of fiber detection feature allows technicians to check drop cables length before testing. Additional PON ONT emulation support allows technicians to emulate an ONT to verify OLT provisioning.

FX120 Lite: The FX120 Lite PON Analyzer is for technicians that don't require multi-gigabit service testing, but still needs to verify signal levels and connections.

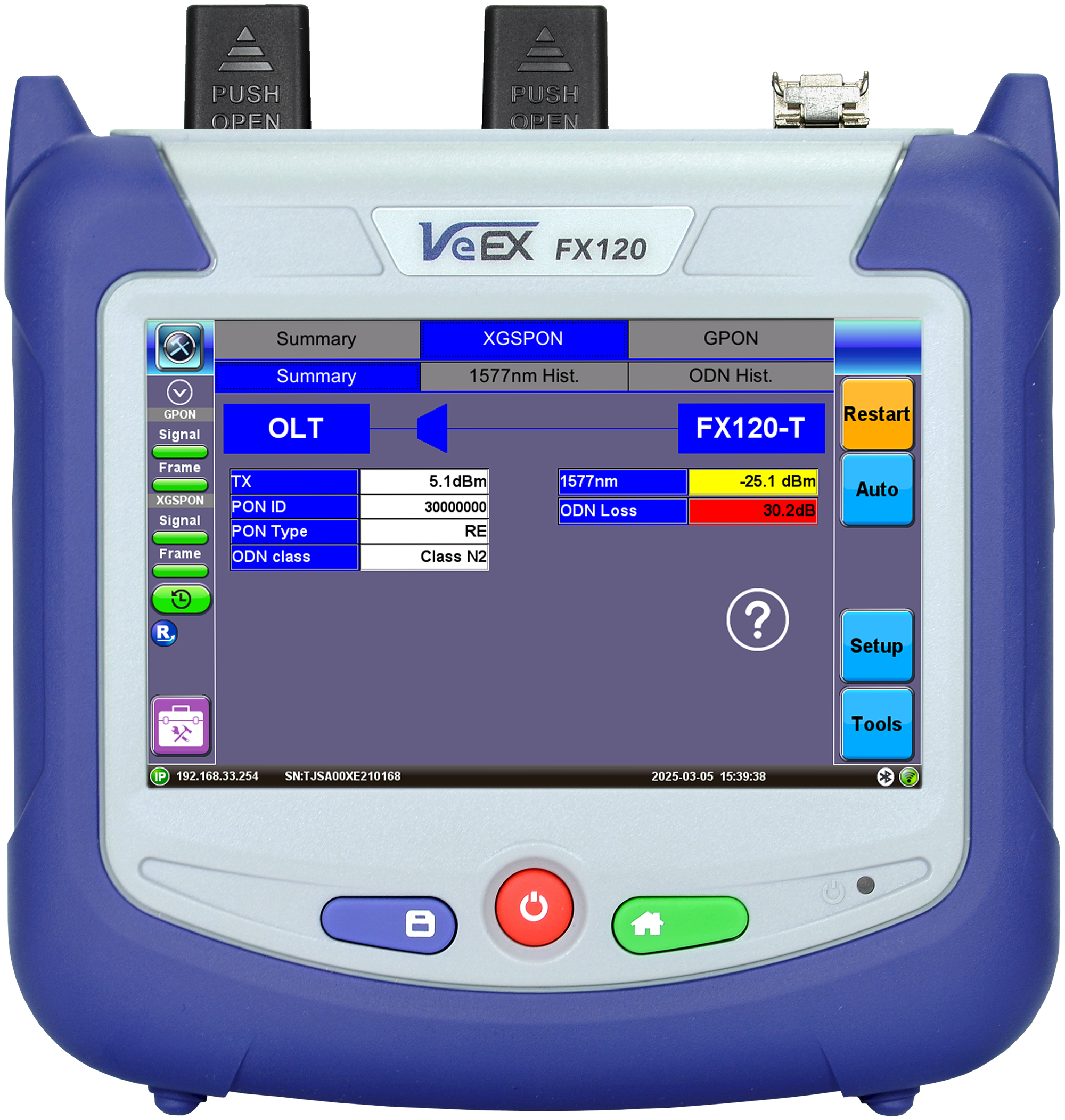

FX120T: The FX120T is a Terminated PON Analyzer with a PONT OPM port, an Ethernet interface and an SFP+ cage to support Layer 4+ testing. Verify construction builds with downstream level measurements and PON ID. Certify QoE using Speed Test and V-PERF to ensure internet connectivity and speed up to 10 Gbps. Optional Fault Locator feature allows technicians to verify drop cables. Optional PON ONT emulation allows users to verify OLT provisioning. Optimize testing and report compilation with NoApp® and Flow.



Watch a short video to see more about the FX120.
