The Rec->USB Button (Record TE Data to USB Memorv Stick)



Pressing this button allow users to select one packet-based Time Error or timing parameter to record in an open CSV format for further analysis (e.g., 2Way TE).



  • Insert a FAT32 USB Memory Stick on any USB port available in the test set.

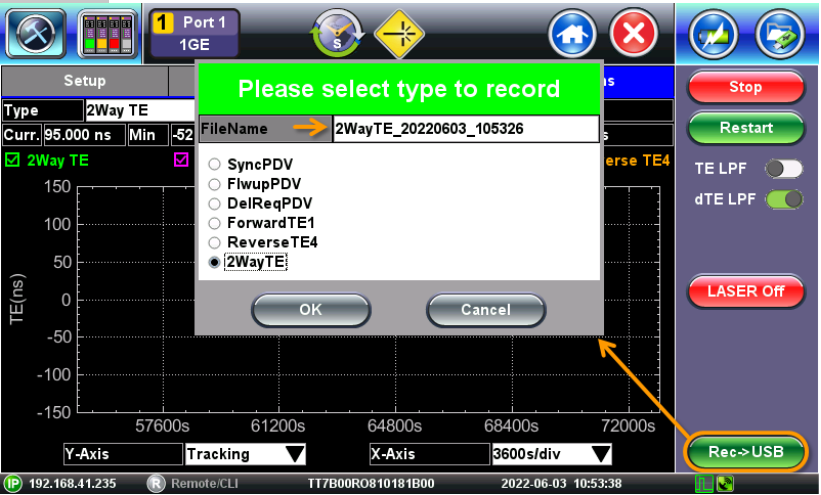

  • Press the Rec->USB button, select the parameter Type to record, tap on the FileName, edit or enter the desired file name, and press OK to start the recording.



Rec -> USB



  • The recording will take place in the background. Users can continue to navigate through the results.

  • Press the now red Recording button to stop the data recording. The CSV file is saved into the USB memory.



Different products and/or software versions may handle the data recording storage differently. Some versions may not require the additional external USB Memory Stick, instead write directly to the test set's internal storage. For those products, the resulting CSV file would be located in the File Manager. From there, it can be selected and exported to a USB memory stick by tapping on the To USB button.



The resulting CSV file can be analyzed using VeEX's Wander Analysis PC Software or it can be exported or modified to be analyzed by more advanced third-party analysis tools. The data format is shown below.

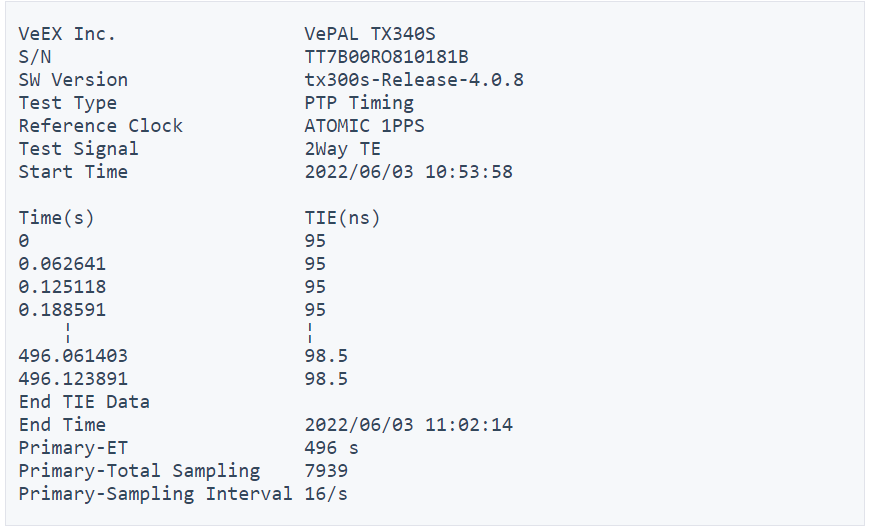

Resulting CSV File
