Packet Capture Results



To finish packet capture and manage packet capture results, press Stop.



To save result packets and view results, tap YES when asked to view results. Results are saved in PCAP format and are automatically named. Wire shark will launch afterwards and display the results.



The file is stored in the Files folder. It can be viewed on the test set or exported and analyzed on PC Wireshark. Refer to File Management.



The Packet Capture results screen is divided into three parts with all details of the capture. The size of each part can be manually

adjusted.

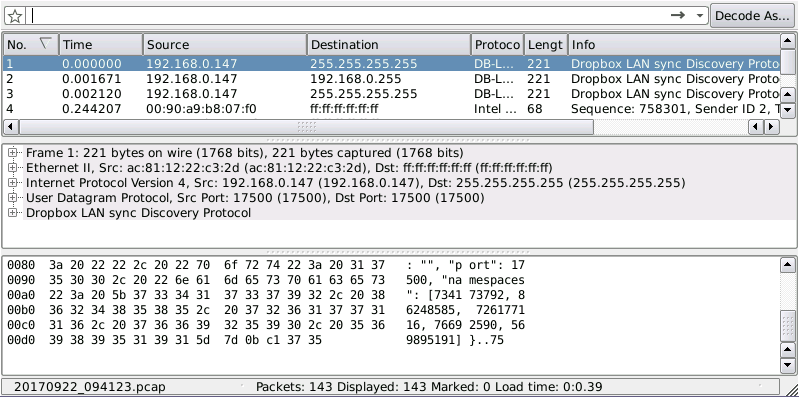

Packet Capture Results on Wireshark



Top section:

  • Time

  • Source

  • Destination

  • Protocol

  • Length

  • Info



Middle and Lower Sections:

  • Frame details

  • Ethernet frame details
