Fiberscope Results/Reports

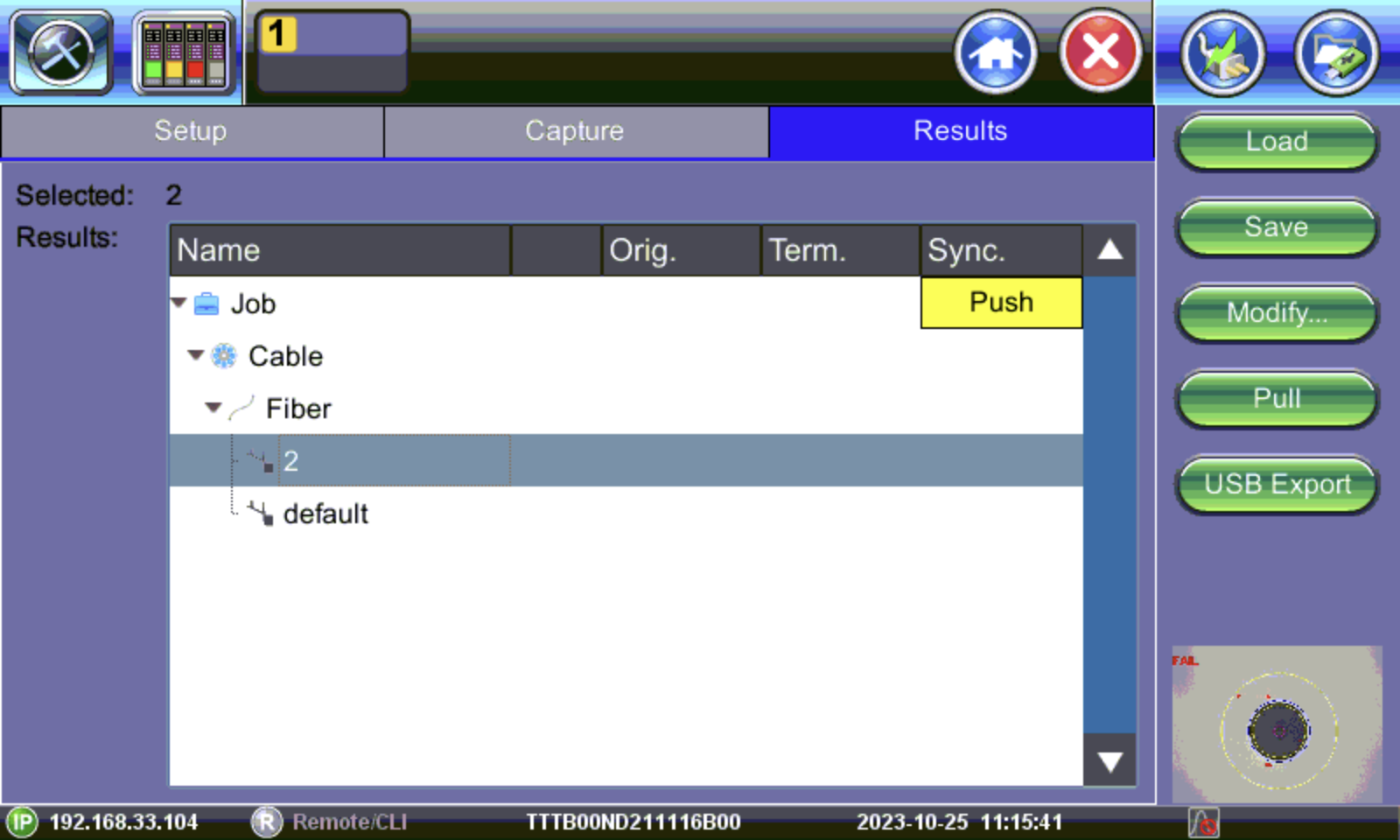

Fiber Scope Results Files

The results screen is used to view previously saved results. Test results can be pushed/pulled from Fiberizer Cloud. The directory displays the location of stored files. Connect to Fiberizer Cloud, then select the file(s) by tapping them.

  • Push/In Sync: Uploads locally saved results to Fiberizer Cloud. In Sync indicates the results have been saved to Fiberizer Cloud successfully.

  • Load: Loads the selected image onto the Capture tab.

  • Save: Manually saves and names the image displayed in Capture (autosave is disabled). Once saved, the files can be accessed in the File Manager or R-Server.

  • Modify: Select a file or folder in the directory to modify. Options to Rename, Remove, and upload the selection to Fiberizer Cloud are available.

  • Pull: When connected, pulls file from Fiberizer Cloud onto test set.

  • USB Export: Exports files to USB stick. Choose Export Group to retain the tree format (sub-directory) or Export Flat to create a single filename using sub-directories to build a name.



Test Analysis Report

To view the report files, tap Utilities>Files>Save . The Fiber Scope test report can be viewed in JPG format or exported to PDF. In addition, all fiber optic test results can be viewed using Fiberizer Cloud or the Fiberizer Desktop Plus PC software. For more information on viewing result files, see File Manager.

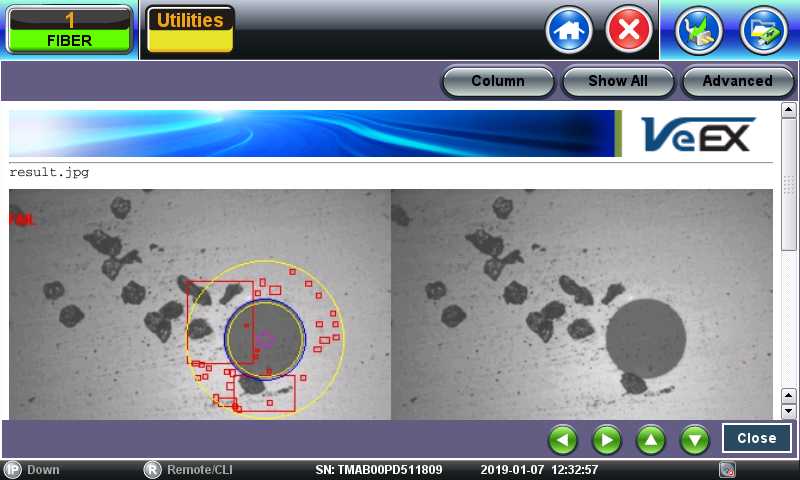

Analysis Report

Analysis Report (.jpg format)

The test report can also be viewed in HTML format.

HTML format

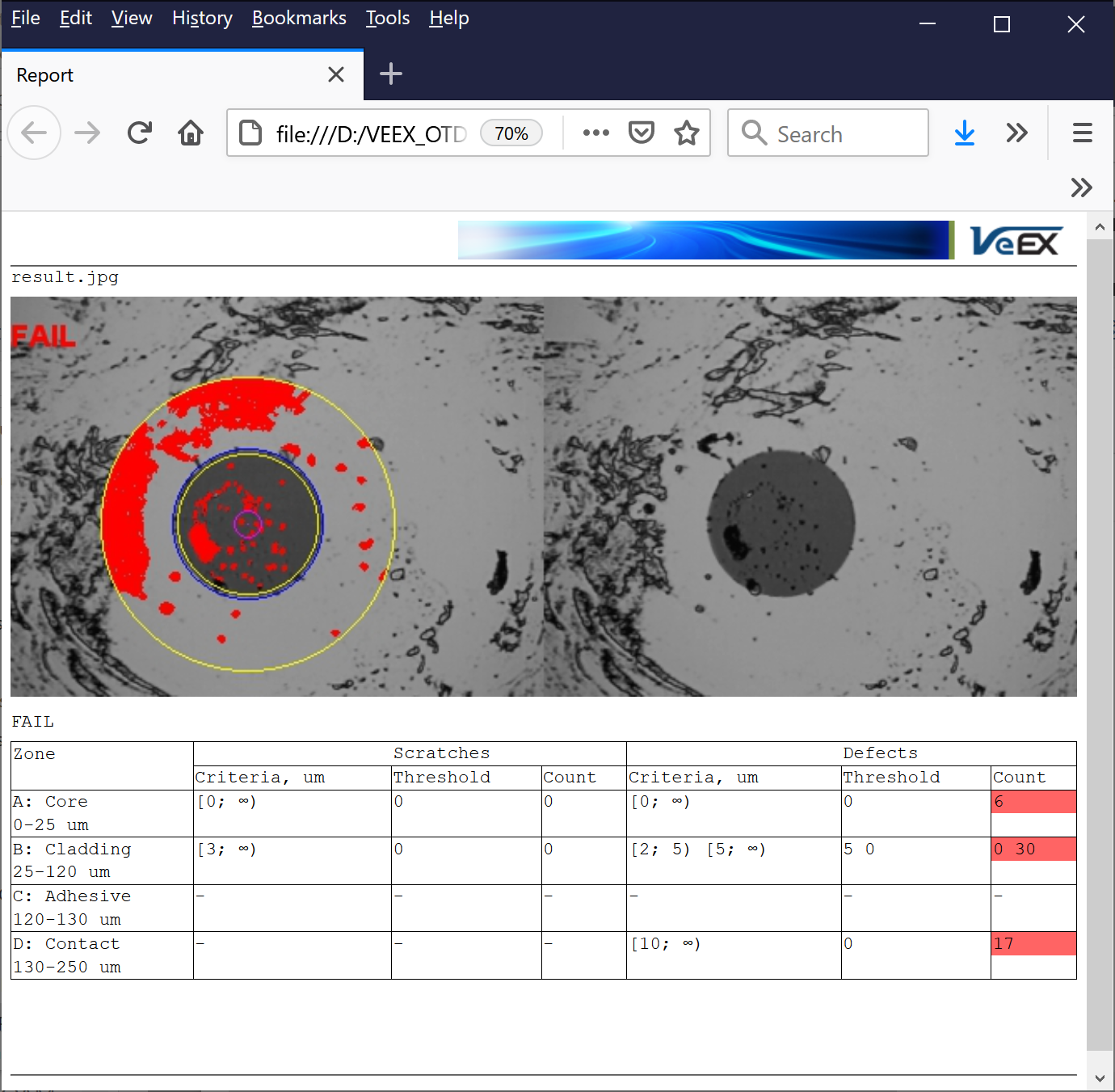

Test Report viewed in an HTML browser



View Fiberscope Reports on Mobile Device

VeEX's NoApp® cloud service enables basic meters and advanced test sets to quickly and easily transfer test results' KPI to a phone or tablet, to instantly generate test reports and allow sharing and uploading to centralized R-Server or cloud.

Internet connectivity is required (e.g., Wi-Fi, LTE, 5G, etc.).

Immediately after saving results, a screen with a QR code appears. To view the test report via mobile device, scan the QR code with the mobile device’s camera. Tap OK to exit the screen on the test set.

Alternatively, tap the QR code icon on the File Manager screen.

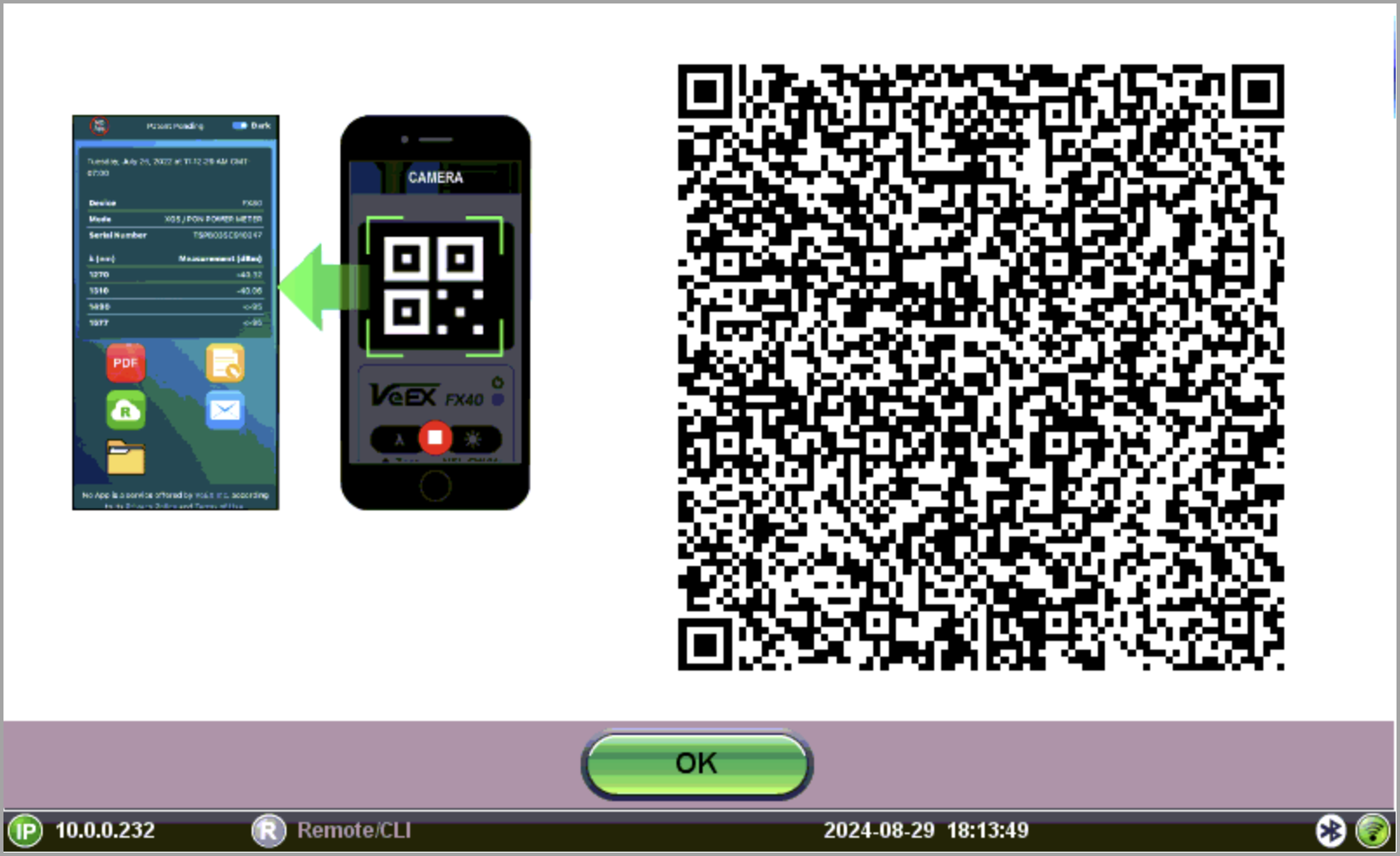

Test Report QR Screen
