Net Wiz

The Net Wiz function tests the Ethernet cable and associated network environment. A typical application is shown below.

Typical Net Wiz Application

Net Wiz tests include:

  • Cable Analysis with distance (Ethernet RJ45 Test port only, not available on Ethernet RJ45 Management port)

    • to switch with MDI mode (Straight or Crossover)

    • to fault, type of fault (Open, Short, Impedance Mismatch)

  • Analyze the network and automatically report

    • Stations

    • Routers/Gateway

    • Printers

  • Provide MAC and IP addresses of each device

  • PING each device and verify the device is active

  • Provide detected networks (NetBiOS, IPX, etc.)

Before proceeding with any Net Wiz tests, make sure that an IP connection has been established. Refer to IP Connection for more information.



Cable Test

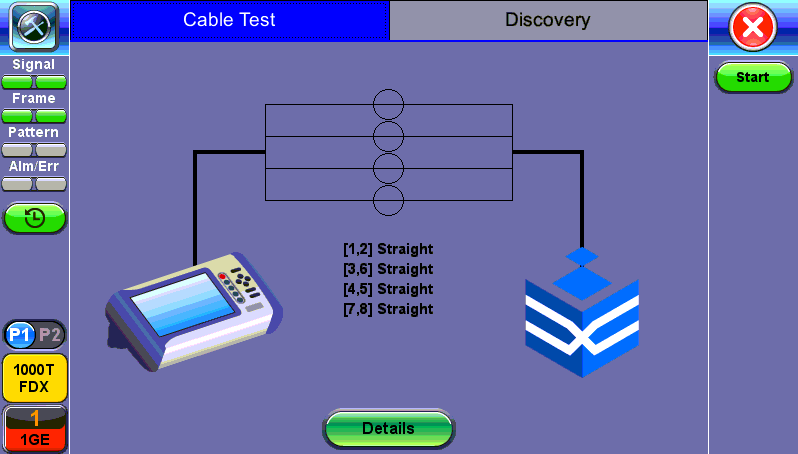

Cable Test



Press Start to begin the test. The test set will return the connection type (Straight or Cross Over) if connected to an end device. If fault is detected (Open or Short) the fault will be indicated as well as the distance to the fault.



Discovery Setup

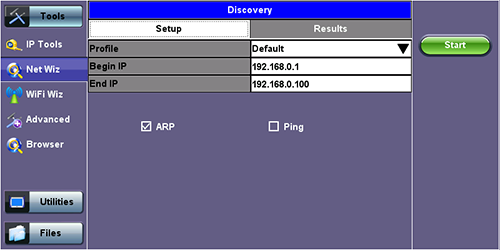

Discovery Setup



  • Profile: Drop-down selections are Default, Delete, Save, Save As...

  • Begin IP: Set the start address for the desired IP range using the numeric keypad

  • End IP: Set the end address for the desired IP range using the numeric keypad



Select by placing a check mark in the corresponding box of any of the following: ARP, SNMP, NetBios, Ping, Net .



Discovery Results

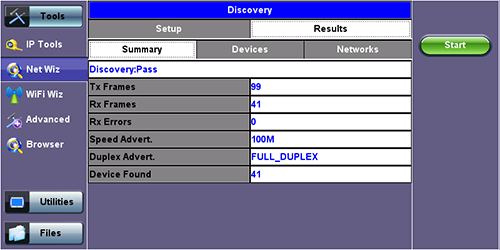

Discovery Results - Summary



Summary indicates the test status and reports:

  • TX/RX Frames: Total number of TX (transmitted) and RX (received) frames

  • RX Errors: Received frames in error

  • Speed Advert: Speed advertised

  • Duplex Advert: Duplex mode advertised

  • Devise Found:Total number of Devices and Networks found



The Devices tab reports global and detailed device information.

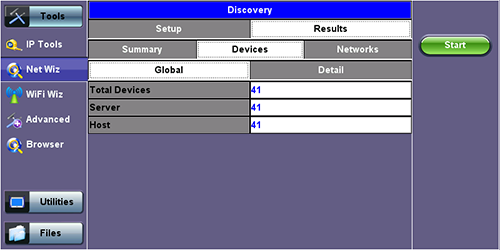

Discovery Results - Devices - Global



Global reports:

  • Total number of devices found

  • Number of devices (Routers, Servers, Hosts)

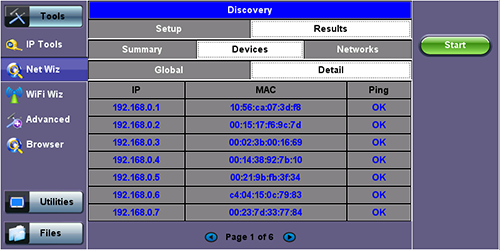

Discovery Results - Devices - Detail



Detail displays the Attribute, MAC and IP Addresses, Group and Machine Names and Ping test results of each device discovered.

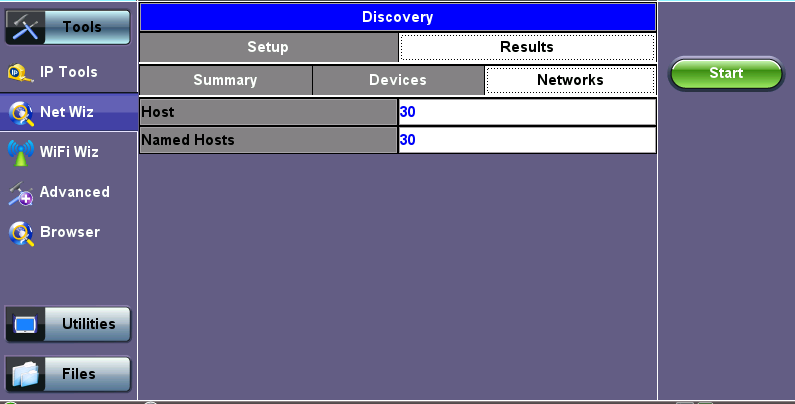

Discovery Results - Networks



Networks reports the number of IP Subnets, Hosts, Domain, and Named Hosts found.
