V-FTP

V-FTP is an internet speed performance test based on uploading and downloading large test files to an FTP server. The V-FTP Throughput feature allows users to test up to full line rate FTP protocol performance to any FTP Server by uploading and downloading files.

Run a FTP Speed Test

  1. Select Speedtest on the test application main menu. Tap the V-FTP tab.
  2. On the Setup subtab, select Download or Upload from FTP Mode.
  3. Enter the FTP server IP Address,File/Path, User Name, and Password information.
  4. A. If setting up for a Download Test, select the TCP Window Size.
    B. If setting up for an Upload Test, select the MTU Size and enter the Size and Bottleneck Bandwidth.
  5. Tap Files to open up the FTP file selection window and view all the files on the server. Select a file to transfer and tap Start to run the test.

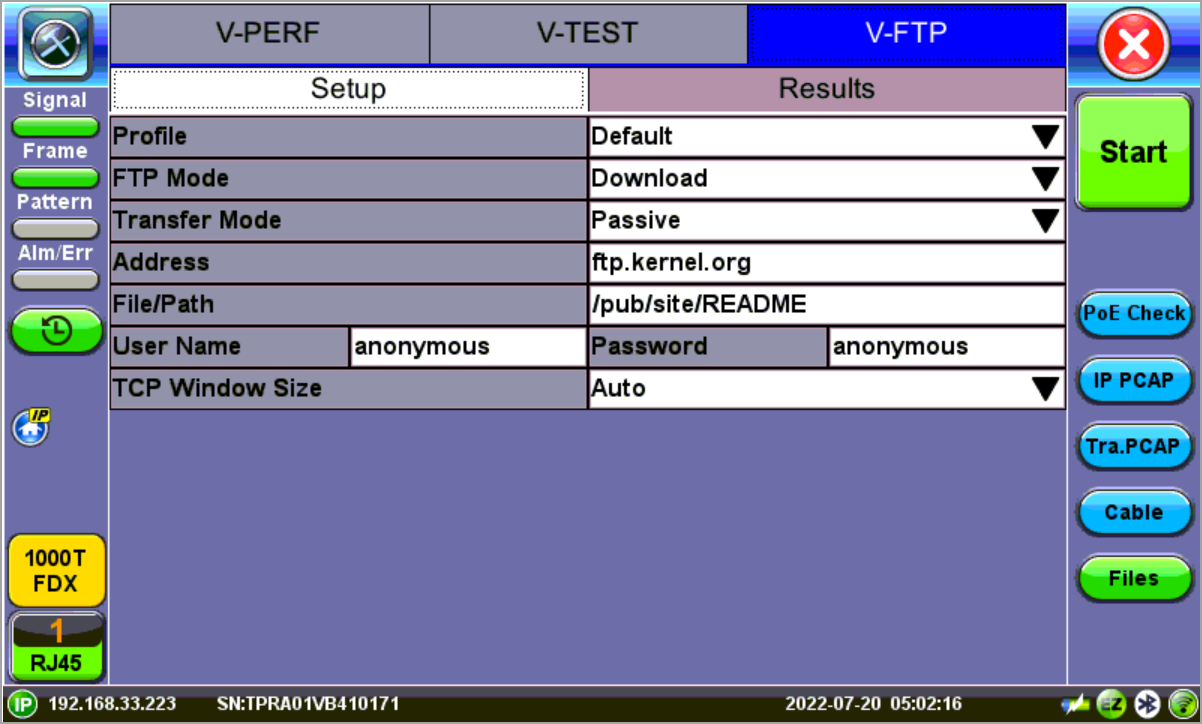

V-FTP - Setup - Download

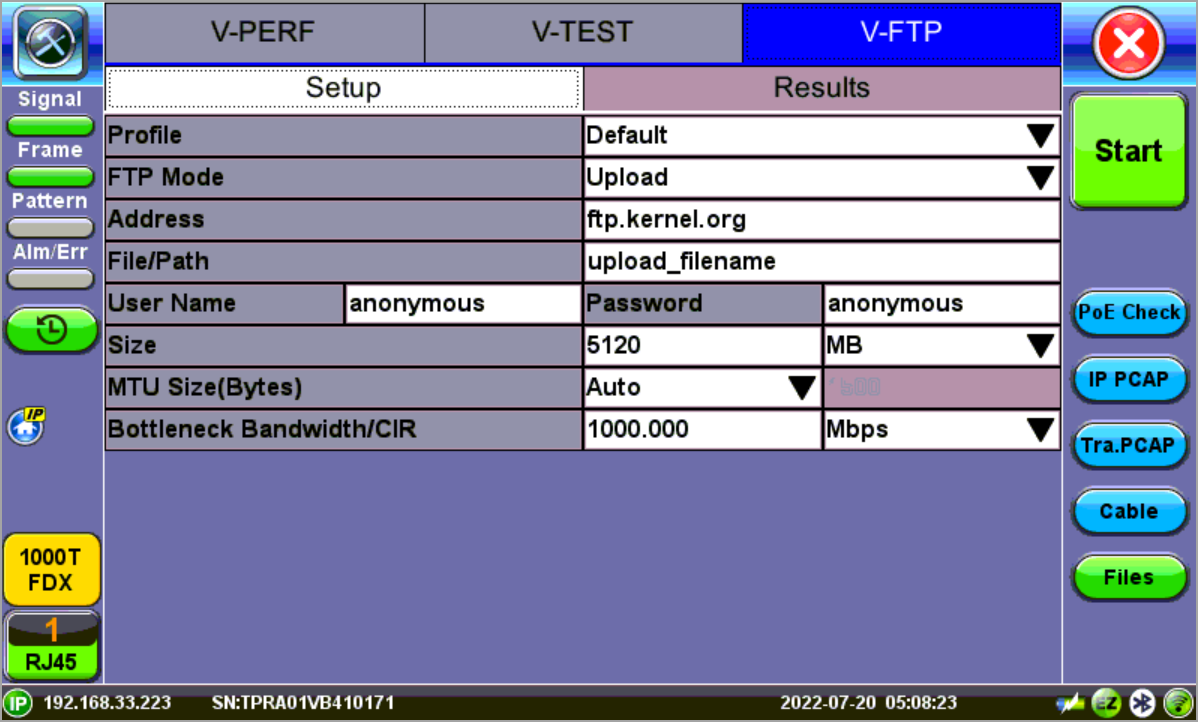

V-FTP - Setup - Upload

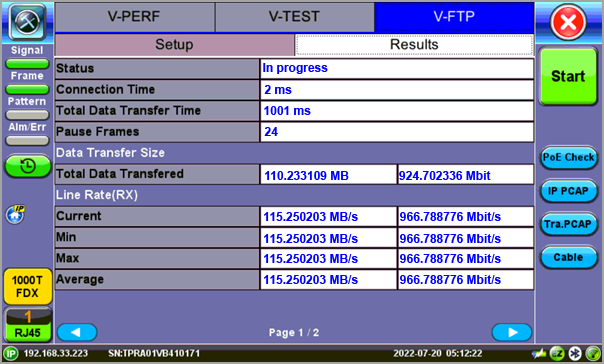

V-FTP - Download - Results
