Header Settings

BERT Profile: Load a previously configured test profile or create a new profile from existing settings.
Encapsulation Type: None, Provider Backbone Bridge (PBB-TE), or Multiprotocol Label Switching (MPLS-TP). MPLS-TP is a simplified version of MPLS. Provider Backbone Bridge MAC-in-MAC (IEEE 802.1ah) encapsulation are configured trunks that add resiliency and configurable performance levels in the provider backbone network. Both options are available for 1GE Copper/Fiber and 10GE port for all Ethernet tests (Layer 2,3 and 4) - BERT, RFC2544, Throughput, V-SAM.

Tap the PBB or MPLS-TP block to configure the settings. All fields are configurable

Backbone MAC Source
Backbone MAC Destination
Ethernet Type
I-SID
Backbone VLAN ID, Priority, Type

MPLS-TP:

MPLS-TP MAC Source
MPLS-TP MAC Destination
Ethernet Type
VLAN ID, Priority, Type
LSP, PW, CW

PBB

Test: Select the test layer to perform the BERT
- Options are Layer 1 Unframed, Layer 1 Framed, Layer 2, Layer 3, and Layer 4

Frame Type: Select the Ethernet frame type for Layer 2 or Layer 3
- 802.3 Raw (IEEE 802.3 frame without LLC) - Not available when Layer 3 is selected

802.3 LLC (IEEE 802.3 frame with LLC header)
802.3 SNAP (IEEE 802.3 frame with SNAP header)
Ethernet II (DIX) (named after DEC, Intel, and Xerox, this is the most common frame type today)

MAC/IP: Tap the MAC and IP blocks on the Frame image to access the setup menus
- Set the Source and Destination MAC address for Layer 2
- Set the Source and Destination MAC and IP addresses for Layer 3 and Layer 4

VLAN: Off, 1 tag, 2 tags, 3 tags
- The user is able to configure up to 3 VLAN tags (VLAN stacking, for Q-in-Q applications)
  VLAN stacking is an option

MPLS: Off, 1 tag, 2 tags, 3 tags
- The user is able to configure up to 3 MPLS tags
  MPLS tag configuration is only available when the MPLS option is purchased

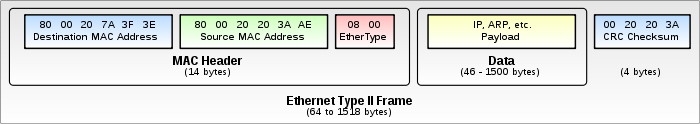

The most common Ethernet Frame format, Type II

MAC, VLAN, MPLS, IP, and Test Pattern Configurations

To configure the MAC addresses, IP addresses, VLAN tag(s), MPLS tag(s), and test pattern, tap on the frame image displayed on the screen. This brings up the configuration screens for all the header fields.

MAC Header Tab:
- MAC Source: Use the default source address of the test set or configure a new or different address.
- MAC Destination: Configure the destination MAC address of the far-end partner test set or use the ARP or ARP GW keys to determine the MAC address of the destination IP address (ARP) or the Gateway (ARP GW).
  A valid IP connection needs to be up to use these functions. Refer to IP Connections

Port setup and IP connection are required prior to performing the following Ethernet applications: Ping, Trace Route, Web/FTP, ARP Wiz, VoIP, IPTV testing, and 1388v2 (except Layer 2).

Tap IP from the Ethernet home menu to access Port and IP settings.

Ethernet Type: For Layer 2 testing, the user can also configure the Ethertype:
- 0800-IP (Internet Protocol Version 4, IPv4)
- 0600-Xerox
- 0801-X.75 (X.75 Internet)
- 0805-X.25 (X.25 Level 3)
- 0806-ARP (Address Resolution Protocol [ARP])
- 8035-RARP (Reverse Address Resolution Protocol [RARP])
- 8137-IPX (Novell IPX)
- 814C-SNMP
- 8847-MPLS unicast
- 8848-MPLS multicast
- 86DD (Internet Protocol, Version 6 [IPv6]) - Future Release

Mac Source

ARP

ARP Gateway

BERT Setup - MAC address settings (Layer 3)

VLAN Tab: In the VLAN tab the following parameters are configured:

VLAN ID: Configurable in the range 1 to 4094.

VLAN ID is the identification of the VLAN, which is basically used by the standard 802.1Q.
It has 12 bits which allows the identification of 4096 (2^12) VLANs.
Of the 4096 possible VIDs, a VID of 0 is used to identify priority frames and value 4095 (FFF) is reserved.
Maximum possible VLAN configurations are therefore set to 4094.

VLAN Priority: Configurable in the range 0 to 6
- Set by the Priority Code Point (PCP), a 3-bit field which refers to the IEEE 802.1p priority.
- It indicates the frame priority level from 0 (lowest) to 7 (highest), which can be used to prioritize different classes of traffic (voice, video, data, etc.).

Type: The following selections are possible:

8100 (IEEE 802.1Q tagged frame)
88a8 (IEEE 802.1ad Provider Bridging)

Drop Eligible: If enabled, drop eligibility flag will be set.
VLAN Flooding: Enable/Disable.
VLAN Flooding Range: Specifies the number of VLAN IDs. Enter a number from 0-4096. The VLAN IDs will be incremented by 1 until it reaches the number of times entered in the flood range.

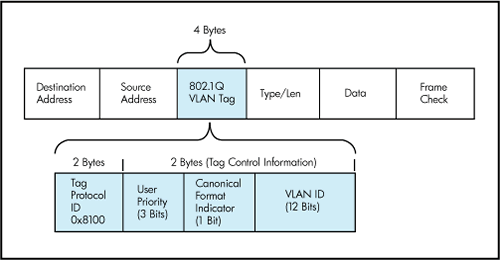

IEEE 802.1Q VLAN Tag in an Ethernet Frame

BERT Setup - VLAN Tag configuration (Layer 3)

MPLS Tab: In the MPLS tab the following parameters are configured:
- MPLS label: Configurable in the range 16 through 1,048,575 (labels 0 to 13 are reserved).
  Composed of 20 bits which allows for the creation of over one million labels.
- CoS: Configurable in the range 0 to 6.
  This field is three bits in length and maps directly to IP Precedence TOS bits to provide Class of Service (COS).
- S-bit: Configurable 0 or 1.
  The S field is one bit in length and is used for stacking labels. This is important as it is used to indicate the last label in the label stack.
- TTL: Configurable in the range 0 to 255. The default setting is 128 hops.
  Used to decrement the time-to-live counter.

BERT Setup - MPLS label configuration

IP Tab: In the IP tab the user must configure the destination IP address and source address. The user may also configure the following IP header fields:
- IP Type: IPv4
- IP Src and IP Dest: For IP Src, if the IP connection is up, refer to IP Connection. The source address is fixed to the IP address from the IP setup menu.
- IP TOS (for Quality of Service testing):
  - Legacy TOS (Precedence): The first three bits of the IP TOS field can be edited:
    000 - Best Effort
    001 - Bulk Data
    010 - Transactional
    011 - Call Signaling
    100 - Streaming Video
    101 - Voice
    110 - Routing
    111 - Reserve
  - DSCP (Differentiated Services Code Point): The first six bits of the IP TOS can be edited to provide more granular service classification.
    For more information on the definition of DSCP field in IPv4 and IPv6 headers, refer to RFC2474.
  - Time To Live (TTL): Configurable in the range 0 to 255.
  - Fragment offset byte: Configurable in the range 0 to 65.528.
    The fragment offset field, measured in units of eight-byte blocks, is 13 bits long and specifies the offset of a particular fragment relative to the beginning of the original unfragmented IP datagram.
  - Protocol field: UDP (0x11), TCP (0x06), User Defined.

BERT Setup - IP Address settings (Layer 3)

Layer 2, 3, & 4 test patterns
- PRBS:
  - 2^31 -1 (147 483 647-bit pattern used for special measurement tasks, [e.g., delay measurements at higher bit rates])
  - 2^23 -1 (8 388 607 bit pattern primarily intended for error and jitter measurements at bit rates of 34 368 and 139 264 kbps)
  - 2^13 -1 (32 767 bit pattern primarily intended for error and jitter measurements at bit rates of 1344, 2048, 6312, 8448, 32 064 and 44 736 kbps)
  - 2^11 -1 (2047 bit pattern primarily intended for error and jitter measurements on circuits operating at bit rates of 64 kbps and N x 64 kbps)
- Fixed: All 0s or All 1s
- User Defined pattern: Length depends on size of frame
- Inversion: Normal or inverted

BERT Setup - Data selection - PRBS Pattern

Auto (Special Patterns): For special patterns, the most significant bit of the test pattern is populated first into the payload frame, as opposed to non-special patterns, in which the least significant bit is populated first.

RX Filter Tab:
Allows the user to filter incoming streams. When checked, the incoming traffic flows not matching these criteria will not be considered for these results.
- MAC Destination address
- MAC Source address
- VLAN
- VLAN Priority
- VLAN Eligible
- Frame Type
- Type of Service
- Protocol Type
- IP Destination address
- IP Source address

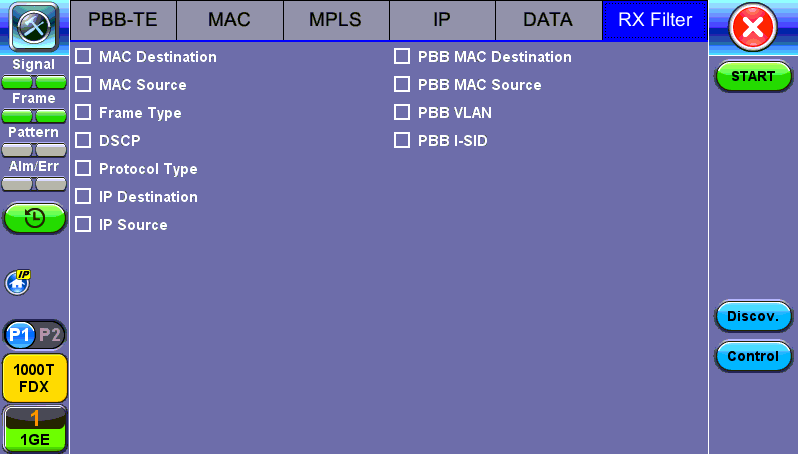

BERT Setup - RX Filter selection

UDP/TCP Tab: Input Source Port and Destination Port.

BERT Setup - RX Filter selection
