RFTS-400 Next Generation Remote Fiber Test System

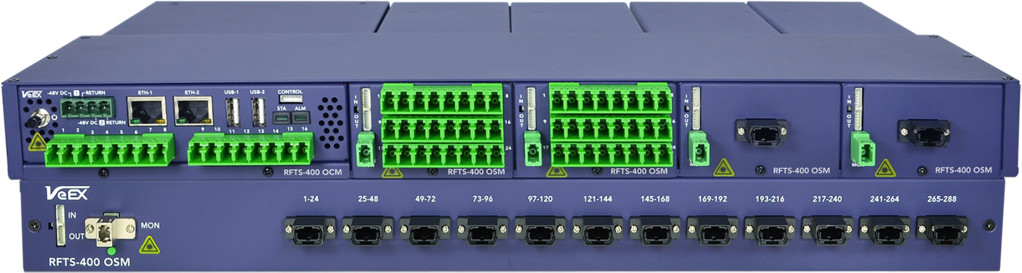

The RFTS-400 is VeEX’s third generation optical remote fiber test unit. The RFTS-400 fits into a 1RU tray which has six single width slots. The OCM requires two slots, leaving four remaining slots in the tray, allowing up to an additional 4 single slot OSM modules or additional OCM modules. The RFTS-400 is field serviceable, expandable, and upgradable. An unparalleled selection of OSM modules are available to support the many network type monitoring applications using the RFTS-400 such as dark fiber monitoring, in-service monitoring, PON construction and monitoring, infrastructure monitoring, and security monitoring.

One RFTS-400 OSM module can be configured to support up to 288 ports in 1RU for high fiber density monitoring applications. All OSM modules can also be configured with integrated FWDM filters without needing additional shelf space for in-service monitoring. By incorporating the FWDM into the OSM module, we also simplify the system installation and reduce the system commissioning time while eliminating the possibility of cross-over connection concerns.

VeSion and Serverless Operation Options

The RFTS-400 can operate as a serverless remote fiber test system or as part of a centralized server monitoring system powered by VeSion, VeEX's state of the art monitoring software platform.
