When placed in 1588v2/PTP Through Mode, the TX320S makes use of both ports to analyze network 1588v2/PTP traffic exchanged between Master and Slave. The unit can be inserted on the network path in passthrough mode between P1 and P2 or non-intrusively via a network tap.

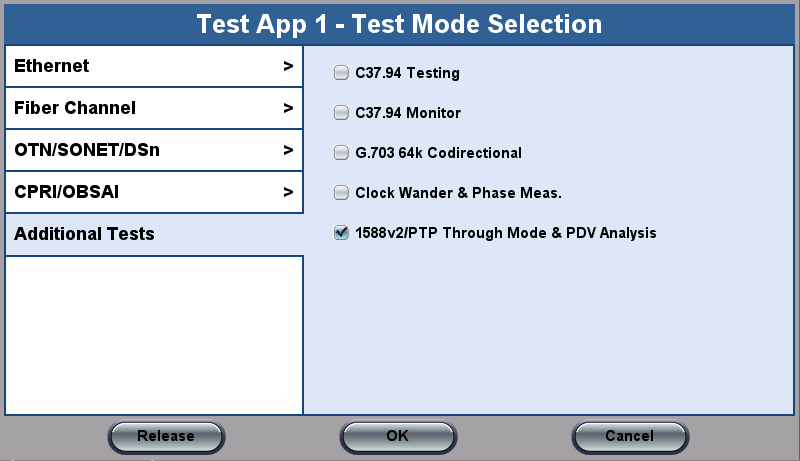

1588v2/PTP Through Mode & PDV Analysis, located in Additional Tests, offers the following features:

• dual port pass-through monitoring of slave and master clock PTP messages

• transparent monitoring with an optical splitter

• bi-directional analysis of 1588 PTP traffic

• bi-directional analysis of Ethernet traffic (PTP and non-PTP)



Through Mode monitoring is conducted through Ethernet test ports 10/100/1000BaseT or 100/1000BaseX.

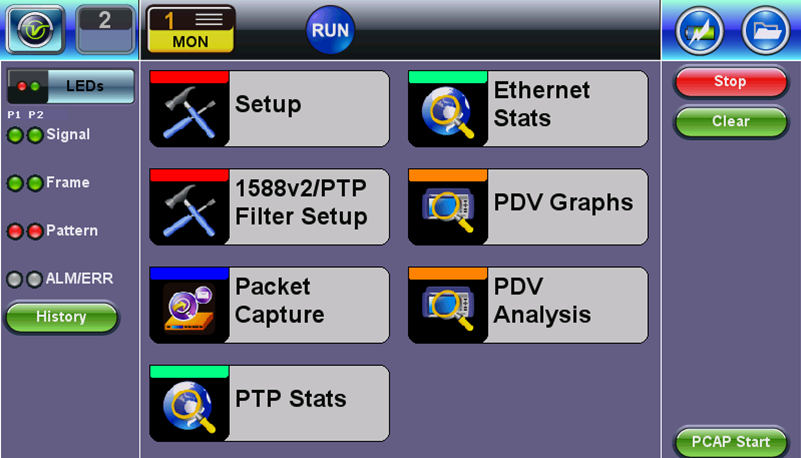

1588v2/PTP Home Menu



In 1588v2/PTP Through mode, traffic forwarding between P1 and P2 becomes active as soon as it is connected on the network, however measurements and statistics are only active after pressing Start.
