Alarms
Alarms tab: The following Alarms (Current and Total) are displayed:
- LOS: Loss of Signal
- LOS Sync: Loss synchronization
- Pattern Loss: Indicates errors related to test pattern
Service disruption associated with loss of signal:
- Current: Duration of the current service disruption
- Total: Total accumulated duration of the service disruptions
- Min/Max: Minimum and maximum duration of the service disruption events
- No. of Occurrences: Counter of service disruption events
Alarm Injection is available only with 10GE Port Tests.
Alarm Type: Local Fault, Remote Fault, PCS-HI-BER, PCS-LOBL
Alarm Flow: The alarm flow determines how the selected alarms will be injected. A specific Count or Continue (continuous) can be selected.
Alarm Length: 1s, 10s, or 100s.

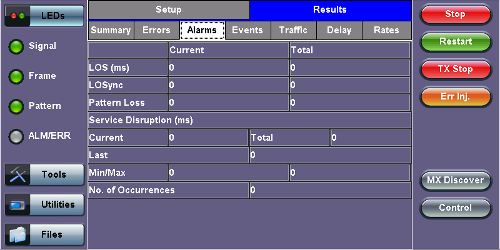

BERT Results - Alarms
