Advanced Optical Transceiver Test & Stress Test



The Transceiver Stress Test and Advanced Optical Transceiver Test features perform a batch of PASS/FAIL tests to check the health and capabilities of high-speed transceivers. From checking optical signal power levels, Lane BERT (pre-FEC) performance, voltage and frequency swing tolerances, I2C/MDIO registers read/write, pre-emphasis manipulation, all the way to verifying error-free Ethernet Throughput.



Transceiver Stress Test

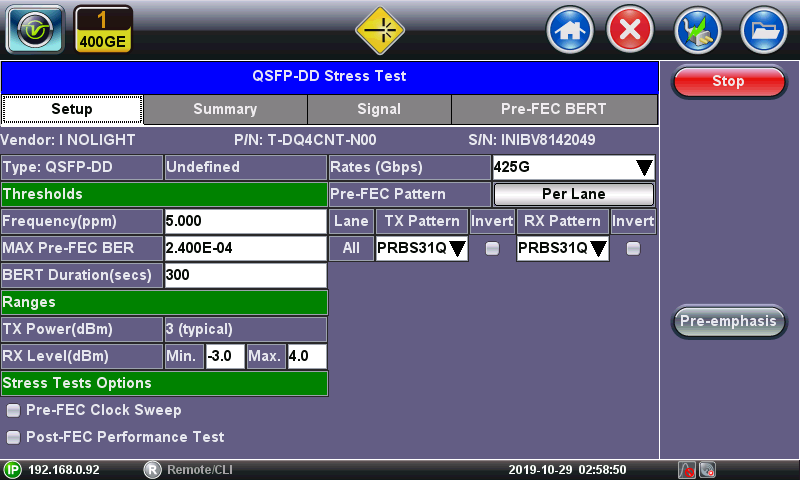

Stress Test Setup: After configuring setup, tap Start.



Stress Test Setup

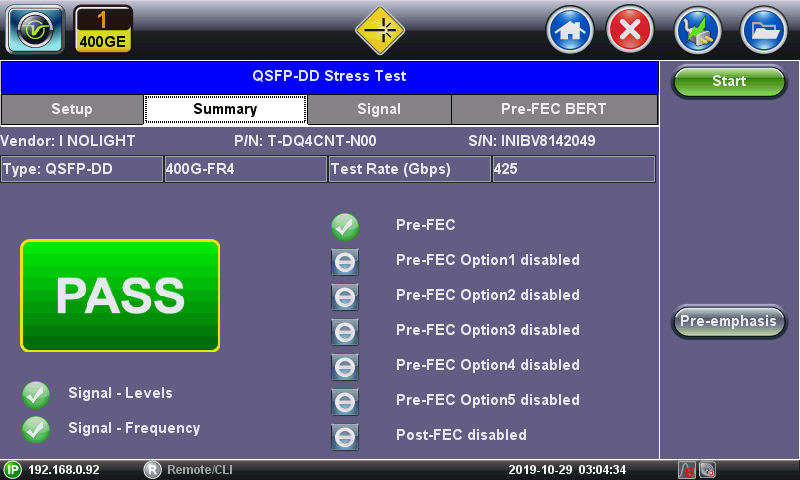

Stress Test Summary: Tap on the Summary tab to view the test summary.



Stress Test Summary

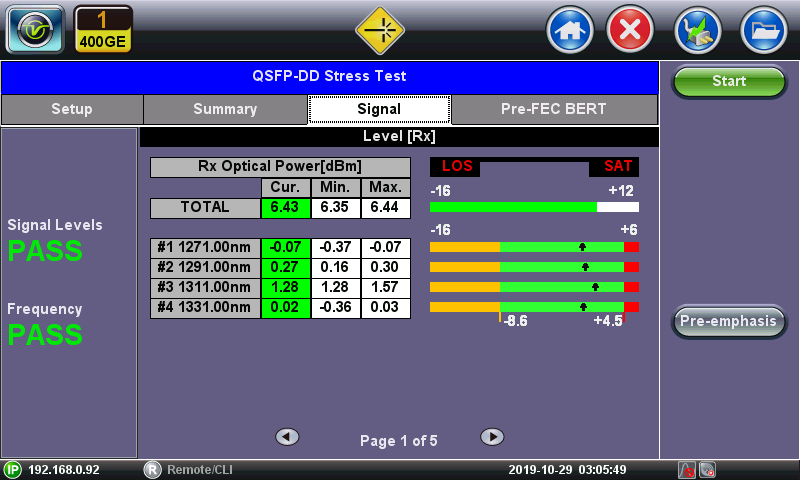

Stress Test Signal Tab (Page 1 ): Tap on the Signal tab to view Signal Level (RX)



Stress Test Signal (Page 1)

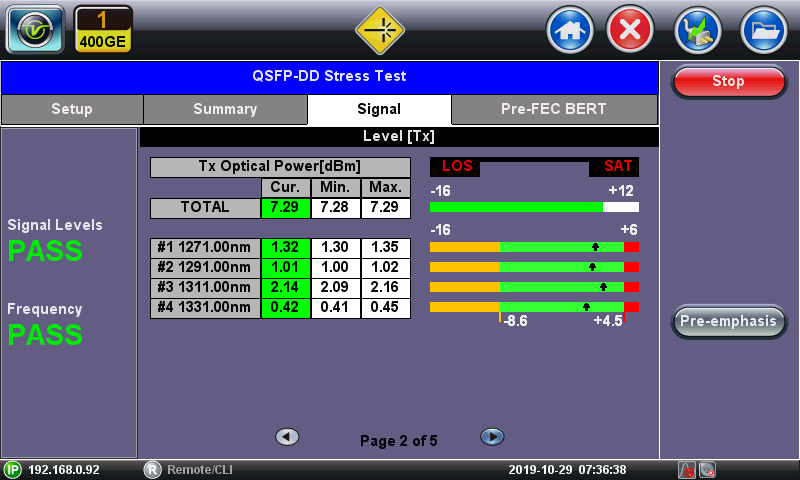

Stress Test Signal Tab (Page 2 ): Tap on the Signal tab to view Signal Level (TX)



Stress Test Signal (Page 2)



Stress Test Signal Tab (Page 3 ): Tap on the Signal tab to view Signal Frequency



Stress Test Signal (Page 3)

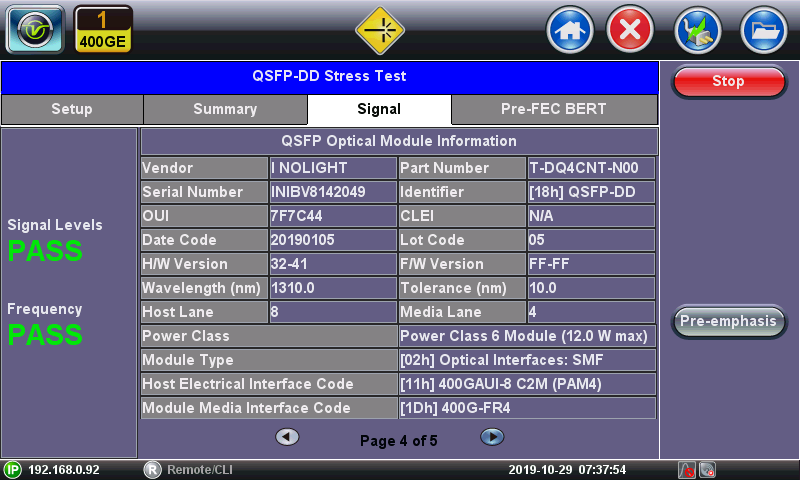

Stress Test Signal Tab (Page 4 ): Tap on the Signal tab to view QSFP Optical Module Information



Stress Test Signal (Page 4)

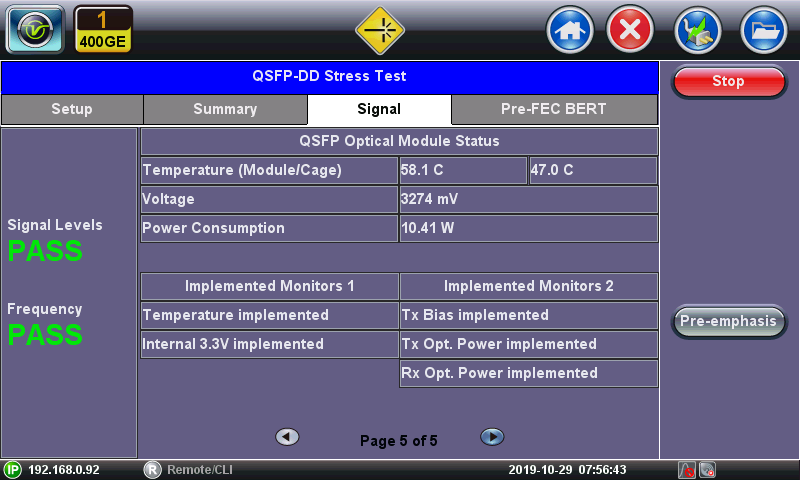

Stress Test Signal Tab (Page 5 ): Tap on the Signal tab to view QSFP Optical Module Status



Stress Test Signal (Page 5)

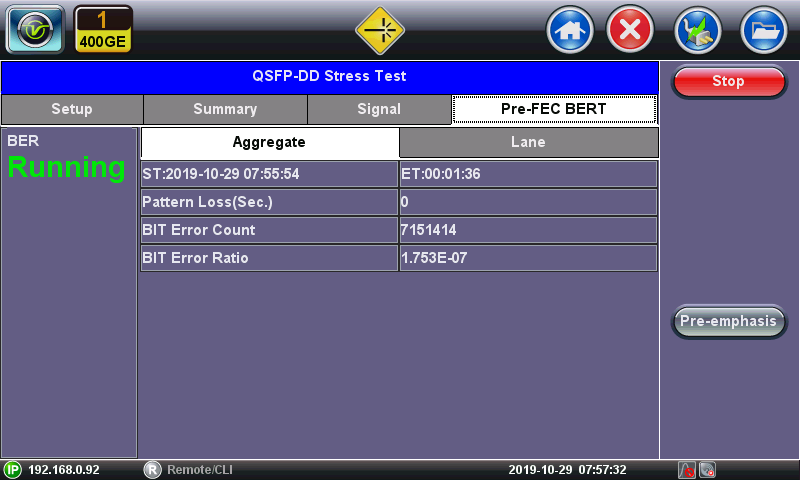

Pre-FEC BERT Aggregate Tab: Tap on the Pre-FEC BERT tab and tap Start. The test will show as running.



Stress Test Pre-FEC BERT Aggregate

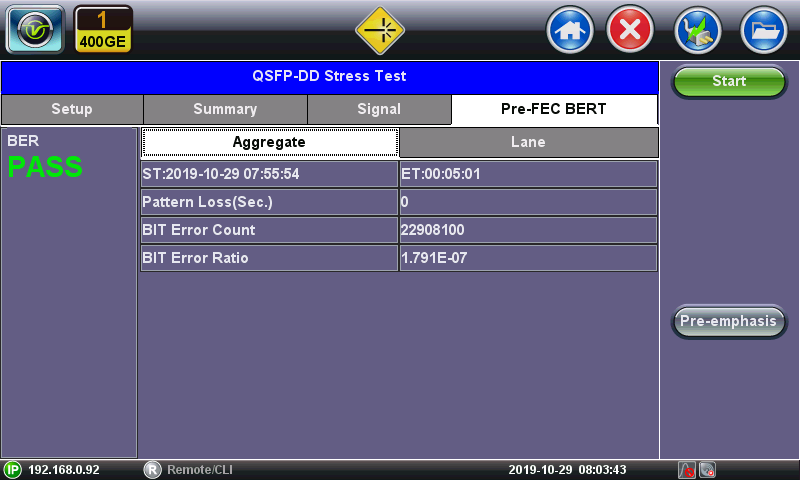

Pre-FEC BERT Aggregate Pass: Once the test has finished the screen will show as Pass



Stress Test Pre-FEC BERT Aggregate PASS

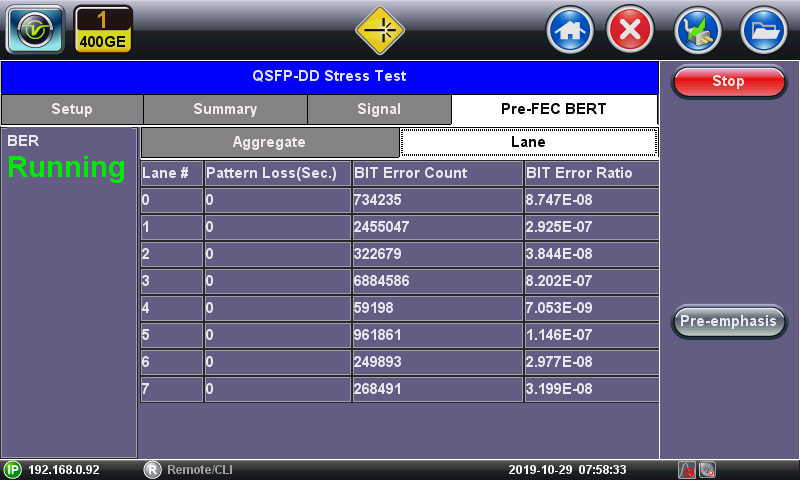

Pre-FEC BERT Lane Tab: Tap on the Pre-FEC BERT>Lane tab and tap Start. The test will show as running.



Stress Test Pre-FEC BERT Lane



Pre-FEC BERT Lane Pass: Once the test has finished the screen will show as Pass



Stress Test Pre-FEC BERT Lane Pass
