Signal



The Signal tab (fiber ports only) displays the optical level measured by the SFP or XFP transceiver.

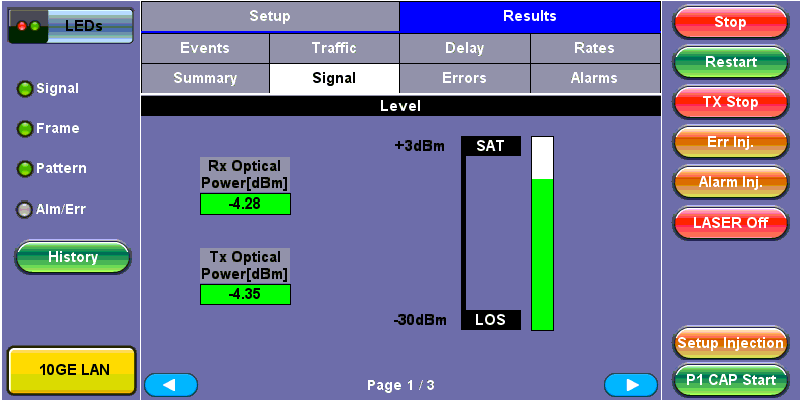

Signal (Page 1) displays the level measurement in dBm for the optical signal.

Loss of Signal (LOS) and the Saturation level for optical signals are shown graphically including the level measurement in dBm.



BERT Results - Signal (Page 1)

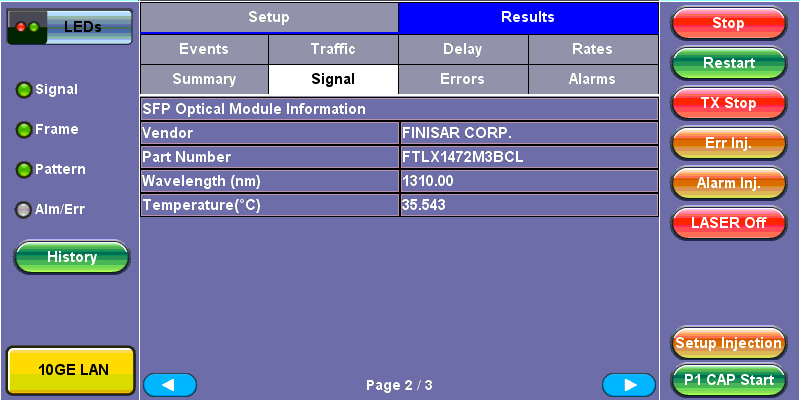

Signal (Page 2) displays the Optical module (SFP) information which includes Vendor name, Part Number and Optical Wavelength. Tap on the Decode button to view additional information on SFP optics.



BERT Results - Signal (Page 2)

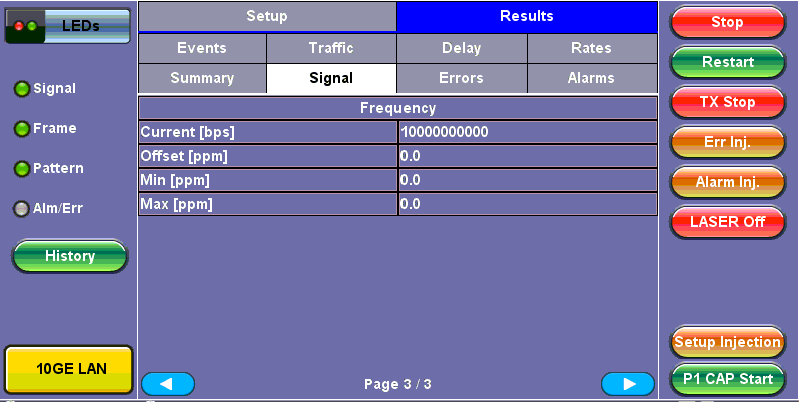

Signal (Page 3) Displays the received signal frequency and offset measured and performed on the optical interface (SFP).



BERT Results - Signal (Page 3)



  • Current: Indicates the frequency of the input signal.
  • Offset: Indicates the difference between the standard rate and the rate of the input signal.
  • Min (ppm): Indicates the difference between the standard rate and the minimum deviation detected in the input signal.
  • Max (ppm): Indicates the difference between the standard rate and the maximum deviation detected in the input signal.
