• CIR: Committed Information Rate. This is the guaranteed maximum rate at which the customer can send frames that are assured to be forwarded through the network without being dropped. Tap on the box to enter a rate and choose between IR Mbps or ULR Mbps. Allowed values range from 0.01Mbps to the line bandwidth.

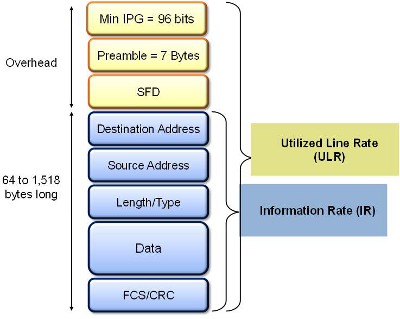

• Information Rate (IR): Measures the average Ethernet frame rate starting at the MAC address field and ending at the CRC.
• Utilized Line Rate (ULR): Measures the average Ethernet frame rate starting with the overhead and ending at the CRC.



V-SAM Services - Header



• Excess Information Rate (EIR): Maximum rate above the CIR at which the customer can send frames that will be forwarded on a best effort basis, but may be dropped in the event of congestion within the network. The combined CIR and EIR must not exceed the line bandwidth. Traffic beyond CIR + EIR will be dropped when it enters the carrier's network. Tap on the box to enter a rate. EIR is expressed in terms IR Mbps or ULR Mbps. Select a term to express EIR or select Disable to disable the test.
• Traf. Policing: Enable or Disable the traffic policing test. For this test, traffic is transmitted at 25% higher than the CIR+EIR. The Policing test fails if the higher traffic rate is allowed through the network.
• Color Aware: Enable, Disable. When Color Aware is enabled, the Drop Eligible parameter in the VLAN header configuration screen is not available for configuration. If no VLAN is configured for the service traffic, the Color Aware parameter is ignored.
• CBS and EBS: Committed Burst Size (CBS) and Excess Burst Size (EBS).
  • CBS can be enabled without enabling EBS.
  • If EBS is enabled, then CBS is automatically enabled too.
  • Values between 4 KBytes and 100 KBytes can be input for both CBS and EBS.

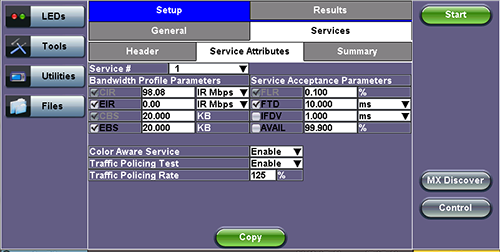

V-SAM Setup - Services - Service Attributes

Enabling/Disabling Tests

A check next to the parameters in the Service Attributes table indicates that the test for the corresponding service is set to run. Tap on the box to remove the check and cancel the test for that service.



Service Acceptance Parameters

The user establishes Pass/Fail test criteria for the following Service Acceptance Criteria. Values define the minimum requirements to ensure that the service meets the Service Level Agreement (SLA):

• FLR: Maximum ratio of lost frames to the total transmitted frames allowed to still be compliant with the SLA. FLR is only guaranteed for traffic conforming to the CIR. Enter a percentage from 0-100.

• FTD: Maximum transfer time that the frames can take to travel from source to destination, and still be compliant with the SLA. FTD is only guaranteed for traffic conforming to the CIR. Values are measured in us, ms, or sec. Input a value within the digital range of .001-999 and 1 us-999sec. The user can also choose to Disable the FTD threshold evaluation. FTD will be measured anyway but the value will not contribute toward passing or failing the service.

• IFDV: Maximum frame jitter allowed to still be compliant with the SLA. FDV is only guaranteed for traffic conforming to the CIR. Values are measured in us, ms, or sec. Input a value within the digital range of .001-999 and 1 us-999sec. The user can also choose to Disable the IFDV threshold evaluation. IFDV will be measured anyway but the value will not contribute toward passing or failing the service.

• AVAIL: Minimum percentage of service availability allowed to still be compliant with the SLA. The service becomes unavailable if more than 50% of the frames are errored or missing in a one second interval. Availability is only guaranteed for traffic conforming to the CIR. Enter a percentage from 0-100. The user can also choose to Disable the AVAIL threshold evaluation. AVAIL will be measured anyway but the value will not contribute toward passing or failing the service.

Copying Services

Copying Services

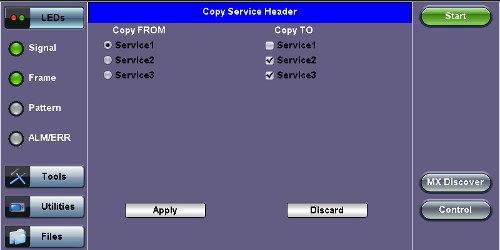

Tap on the Copy button on the bottom of the Header or Service Attributes tabs to copy frame parameters specific to that tab to other services. For example, pressing Copy on the Header tab will only transfer header parameters to other services.
