Backlight

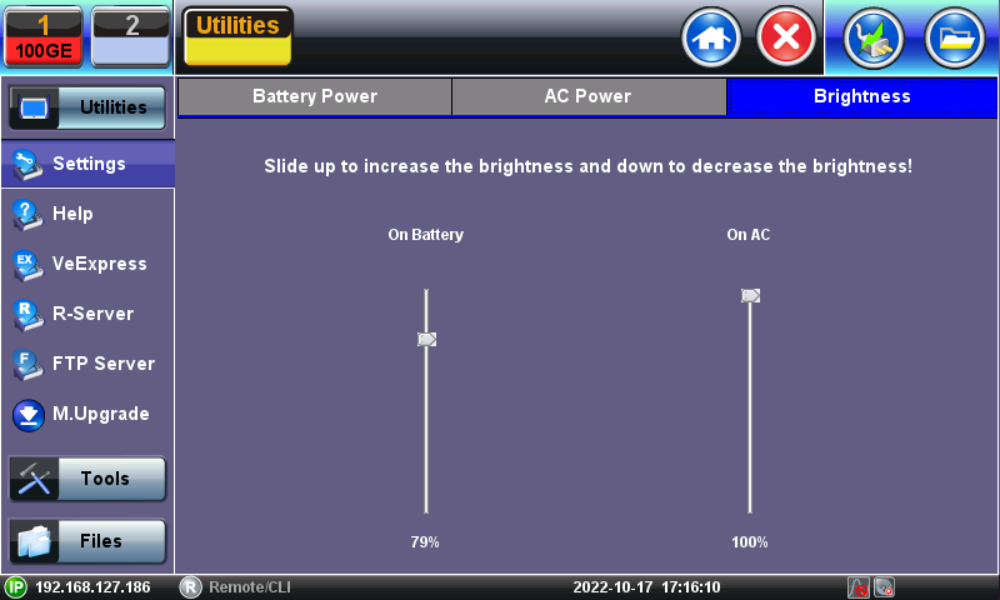

This section provides backlight control of the unit. There are two intensity settings:

1. Battery power and

2. AC power.

On Battery Power

• Select a timer to turn off the backlight if the unit is not in use. This function helps improve the battery autonomy and preserve LCD life.
• To enable the timer, check "Turn off backlight if device is not used for" and with the drop-down menu, adjust the duration of the idle time before the backlight is turned off.
• Once the timer is active and the backlight turned off, any action on the test set (touch screen, keypad) will turn on the backlight again.

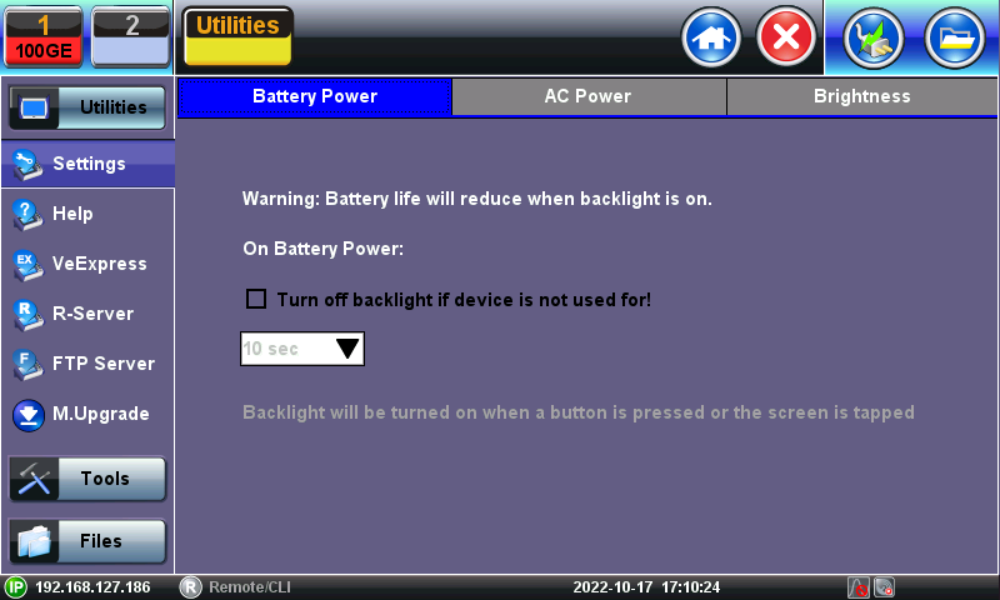

Backlight - Battery Power

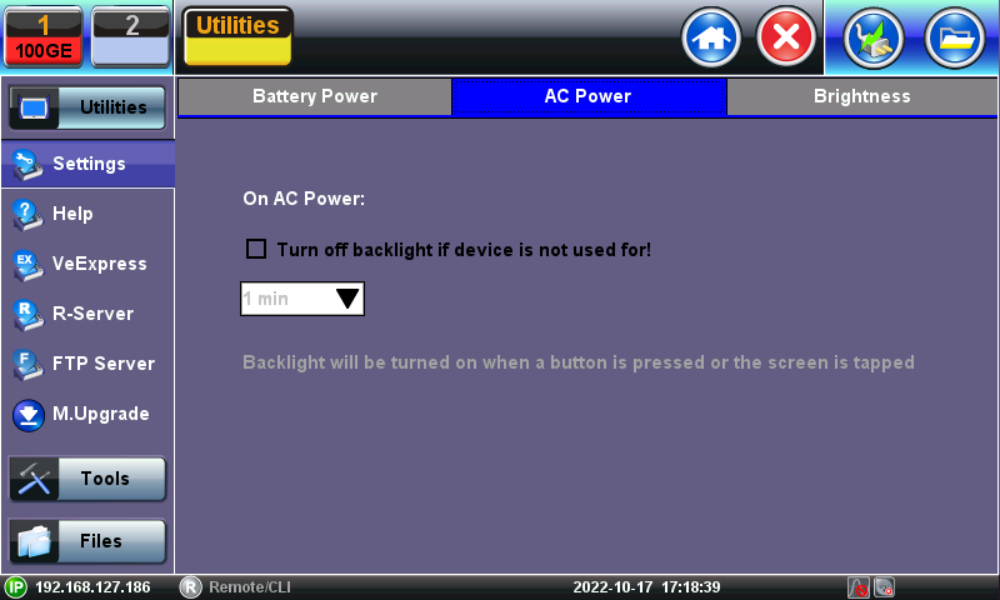

On AC Power
