Pre Emphasis



Pre-emphasis

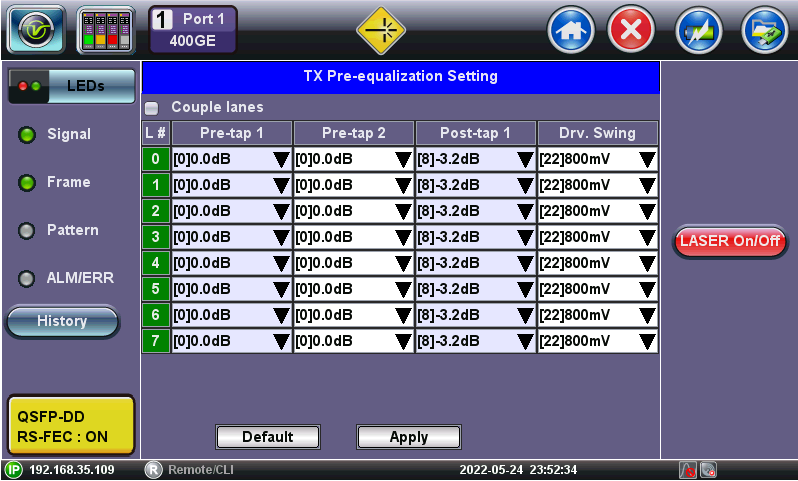

• Per-lane PAM4 Pre-emphasis Settings

  • Advanced user can configure PAM4 signal conditioning circuits for each lane, on the host side, to match a transceiver for the best performance

  • Per-lane Pre-taps (1,2,3), Post-tap and Attenuation

  • Can be used to verify/stress transceiver tolerances
