PCS



  • HI-BER: high bit error rate of sync header

  • LOA: Loss of Alignment marker

  • LOBL: Loss of block lock

  • Invalid Sync header: first 2 bits of the 64/66 block header

  • Invalid alignment marker: inserted every 16383 block on each virtual lane it contains the Virtual lane identifier

  • BIP: generates bit interleave parity error

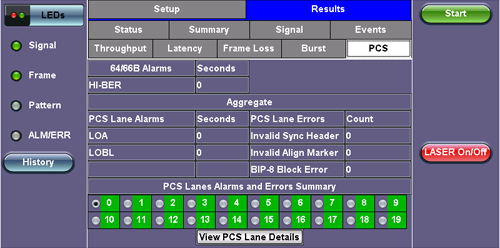

RFC2544 Results - PCS

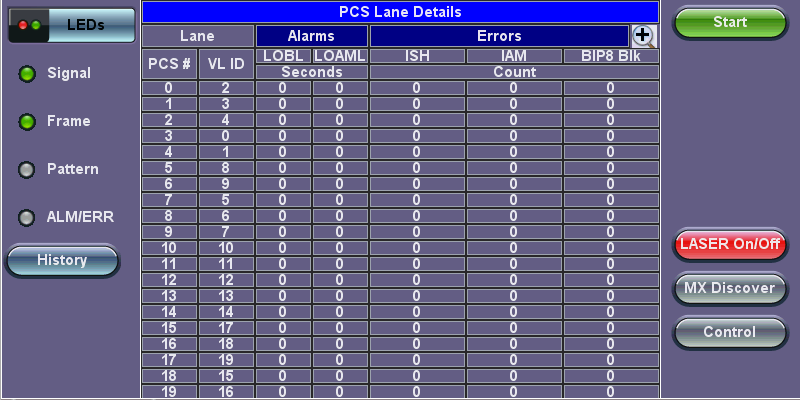

RFC2544 Results - PCS Lane Details
