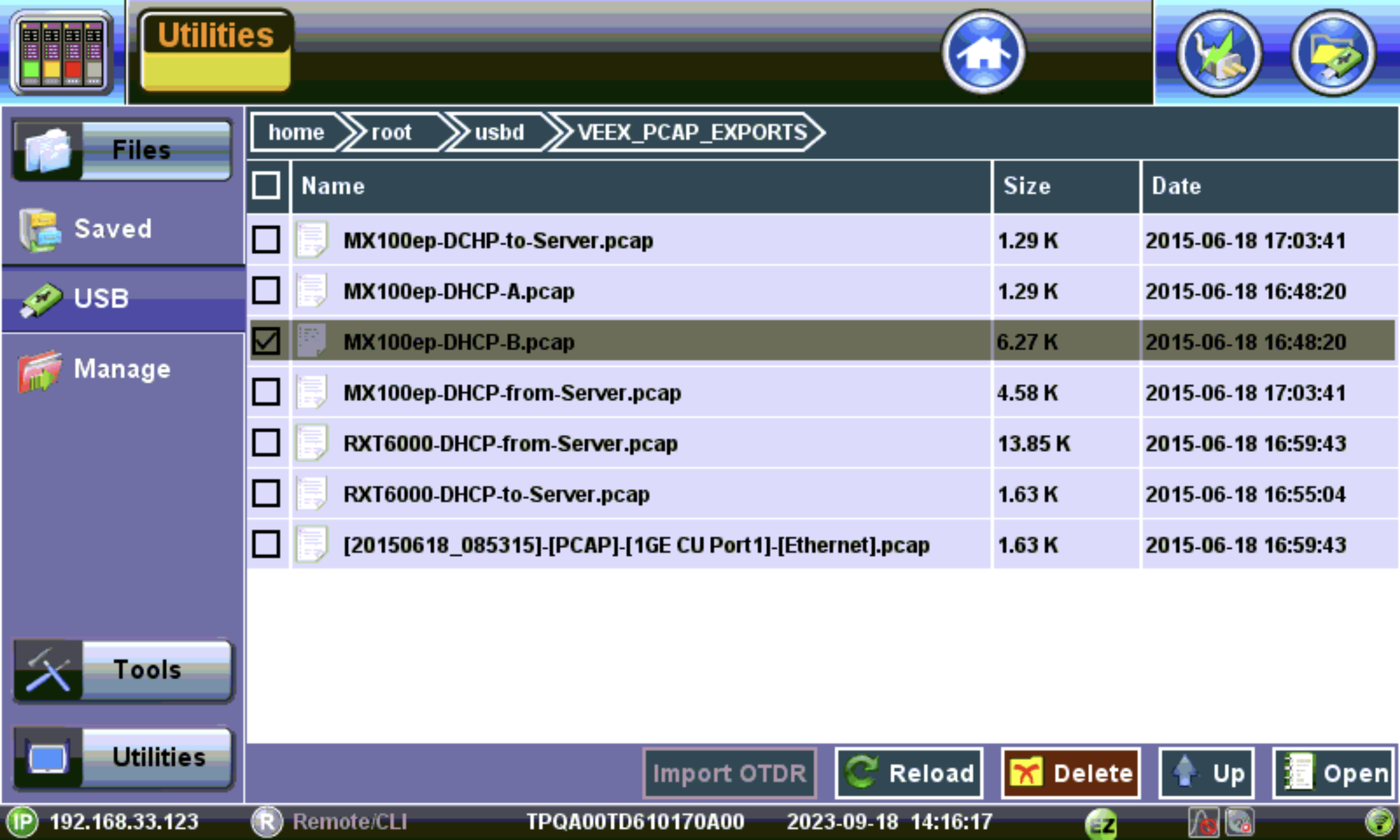

USB Memory Browser





The File Manager provides basic USB memory stick management tools to browse and manage files without the need of a PC. If needed, use the micro-B USB to USB-A adapter to connect to the USB memory stick.

	When an OTDR module is used, OTDR test results (SOR files) can be imported.
	Refreshes the USB stick info.
	Erases the selected files or folders.
	Exits the current folder and moves up to a higher folder in the file tree hierarchy. The current folder structure is shown in the top bar.
	Opens certain file types.



The USB tool supports one USB memory stick. If more than one memory stick is available, it shows the first USB memory stick recognized from any of the two ports.



The following file types are supported:

• HTML: Launches the browser to display its content (test results and OPM results)
• TXT: Launches a basic text viewer to display its content (test results and OPM results)
• PCAP: Launches the built-in Wireshark® protocol analyzer
• MTIE: Launches the optional built-in Wander Analysis tool
• SOR: Supported with OTDR module or built-in test set only.
• PNG: Screenshots (Fiberscope images)
