The Summary screen displays the 1588v2 message statistics including the number of Total messages, Event messages, and General messages along with information on Lost, Duplicated, Out of Sequence and Unidentified messages. Tap on Page 2 to see more detailed message error information.

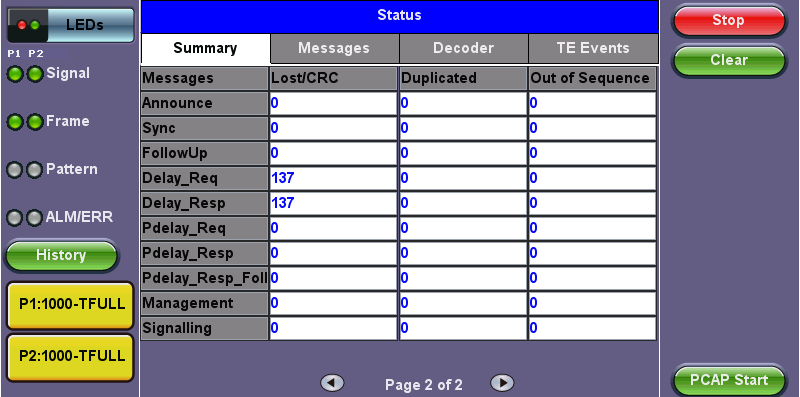

Summary (Page 2)



Additional message information is displayed on the Messages screen.



Messages

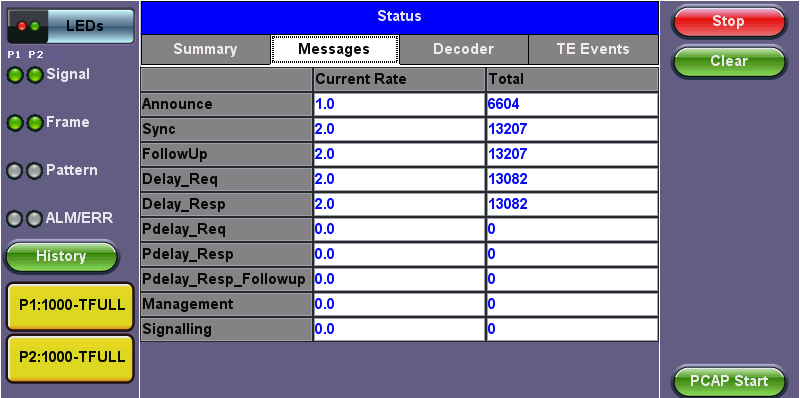

The Messages screen gives a further breakdown by message type. The total and per second average message rates are displayed.



Messages



Decoder

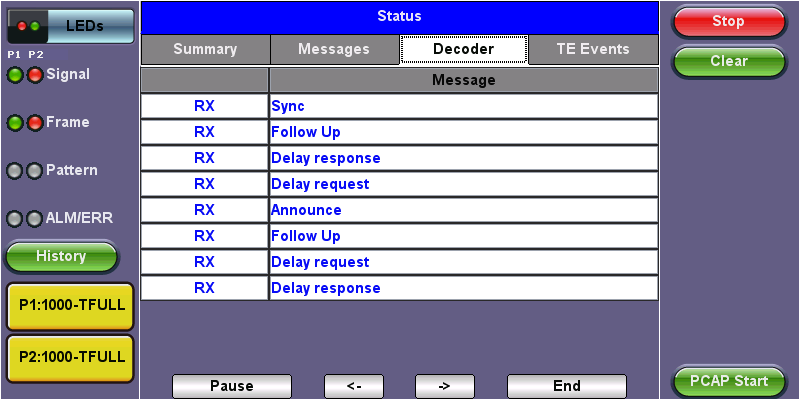

The Tracer shows the 1588v2 messages from both Master and Slave clock devices.



There are four function keys:

• Pause/Continue - to pause or continue the tracer.

• <- & -> - in Pause mode, use the key to page up or page down.

• End - in Pause mode, use End key to jump to the end of the trace.



Decoder



Decoded Message



TE Events



TE Events tab

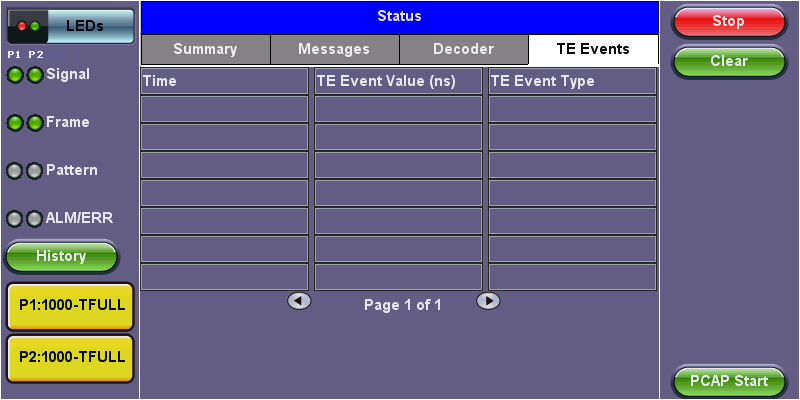

The TE Events tab displays TE Threshold crossing events with a timestamp.
