Errors



Errors tab: The following errors (Current and Total) are displayed:

  • Bits: Indicates errors related to test pattern (Bit Error or LSS [Pattern Loss]).
  • BER: Bit Error Ratio.
  • Symbol: Declared when an invalid code-group in the transmission code is detected.
  • FCS/CRC: Number of received frames with an invalid FCS.
  • IP Checksum (Layer 3 only) .
  • Jabber frames: Number of received frames larger than 1318 bytes containing an invalid FCS.
  • Runt frames: Number of received frames smaller than 64 bytes containing an invalid FCS.

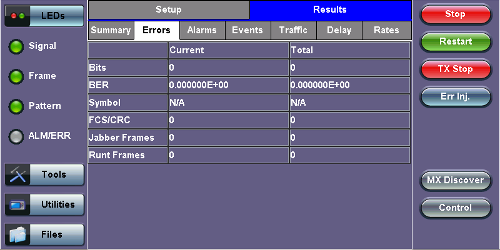

BERT Results - Errors
