Press the Load Table button in the right side toolbar to load existing channel tables and addresses:

• Table: Select the IPTV channel table to test. The IPTV channel table can be configured manually on the test set using the Editor function. Alternatively, the IPTV channel table can be created using the ReVeal LX software which can subsequently be downloaded onto the test set.

• Channel #: Select and configure the channel to be analyzed. The channel can be in IP address or URL format.



IPTV Setup - Editor Tab

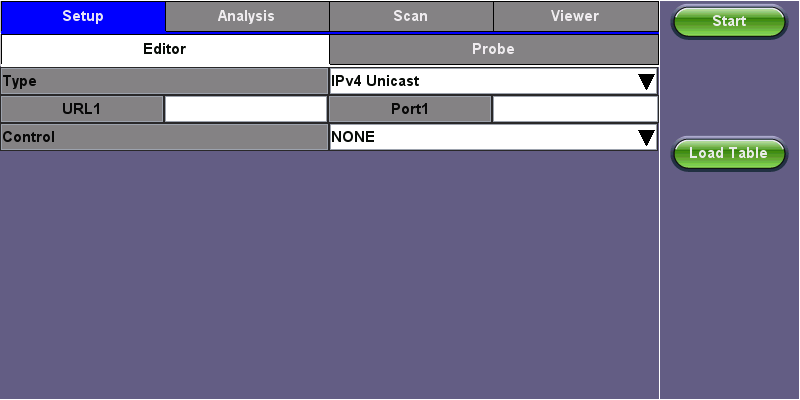

To manually configure the test set using the Editor function, fill out the following parameters:

• Profile: Selections are Default, Delete, Save, Save As...

• Type: IPv4 Unicast or IPv4 Multicast

• URL: Enter the IP address using the pop-up keypad

• Port: Enter the port number

• Dir: NONE

• Control: NONE

• Transport: Auto

• Codec: Auto

• MPEG: TS ISO



Once configurations are completed, press the Start key to begin.



IPTV Setup - Probe



Probe

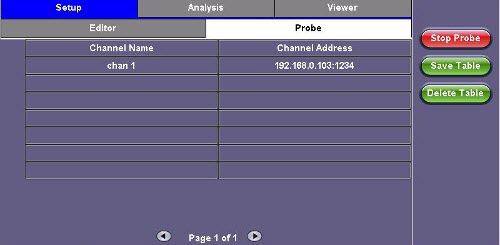

The Probe function is a packet sniffer. It detects all incoming unicast or multicast traffic to the test port and displays the channel name and address.

• Use the probe function to detect streams received by the test set. The streams can be saved as a channel table.

• The probe function is available for use prior to any configuration. Note that the probe function does not send IGMP join requests, the streams need to be already established by the STB prior to using this function.
