Test Reports

Test reports can be accessed from the test set's files or from a mobile device by scanning a provided QR code. Refer to File Manager for more information on accessing the test set's files. For more information on viewing reports on mobile devices, refer to Working with Saved Results, Profiles, Images.

View Test Report from Platform Files

To access the test results stored in the test set:

Press , then press on the top left of the screen.
Select the Results & Files tab. The File Management screen is displayed.
Select the desired results file to open the test report.

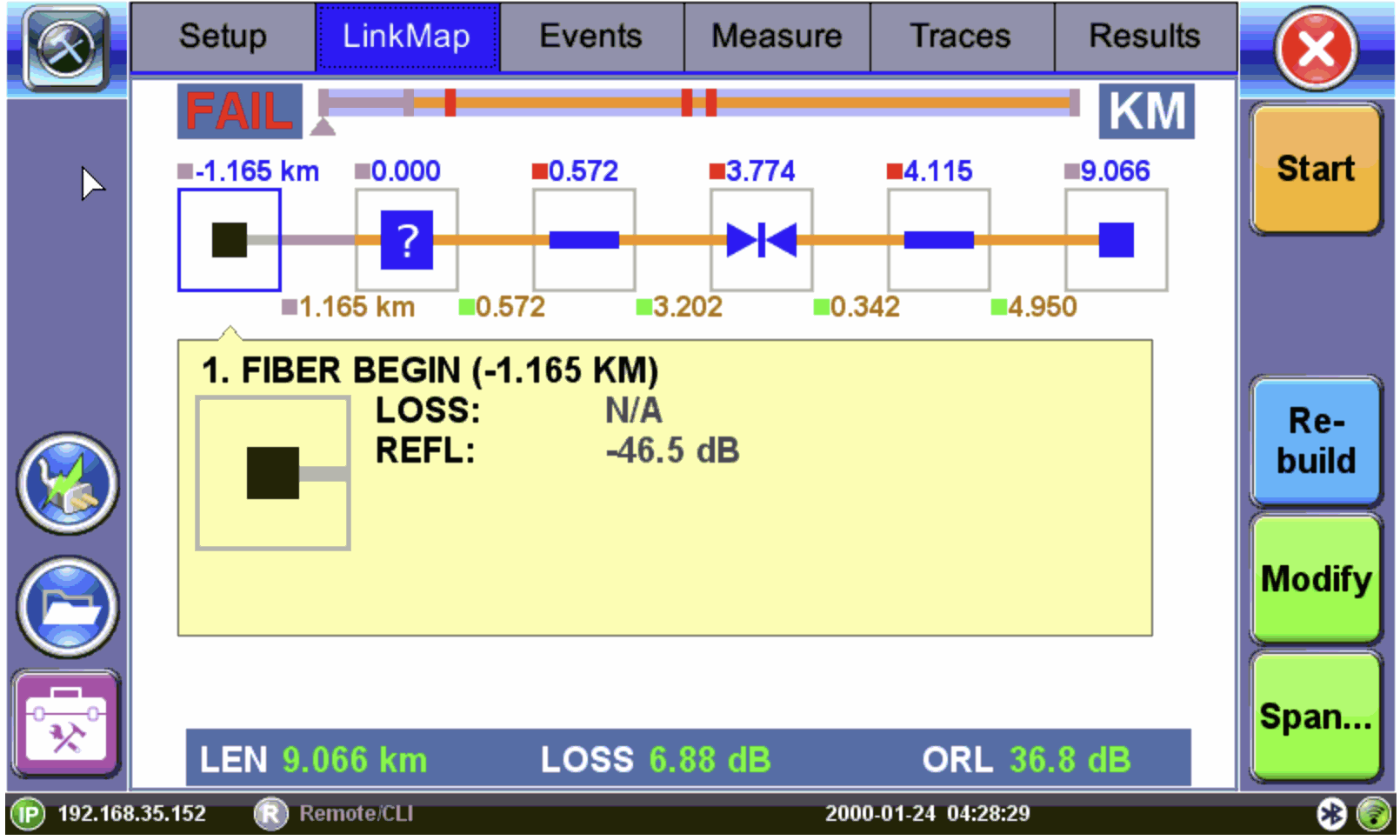

To navigate the test results report, use the links in its Table of Contents and the right rocker switch to scroll Up and Down. Refer to OTDR Screen Navigation.

View Test Reports on Mobile Device via QR Code

To view OTDR Test Reports on a mobile device, turn on the setting in the test set's platform settings.

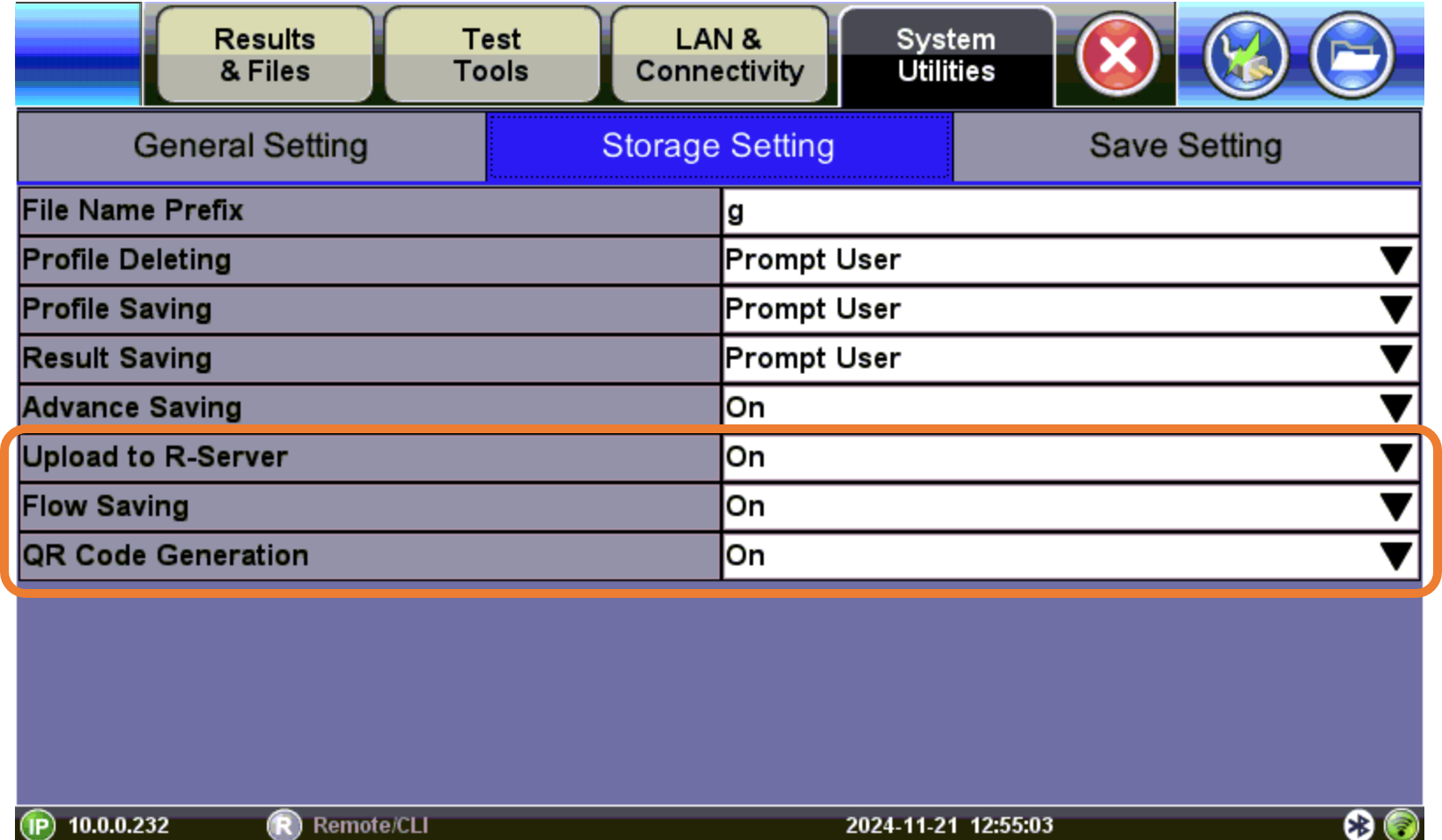

Go to > System Utilities > Global Settings > Storage Settings and make sure QR Code Generation is turned ON.

Enable QR Code Generation

VeEX's NoApp® (US Patent 12,190,199)*This product is protected under U.S. Patent No. 12,190,199 and may be covered by additional patents. Any unauthorized reproduction, sale, or distribution is strictly prohibited and may result in legal action. cloud service enables basic meters and advanced test sets to quickly and easily transfer test results' KPI to a phone or tablet, to instantly generate test reports and allow sharing and uploading to centralized R-Server or cloud. See short video about the VeEX NoApp® Wireless Test Results Transfer via NFC.

Internet connectivity is required (e.g., Wi-Fi, LTE, 5G, etc.).

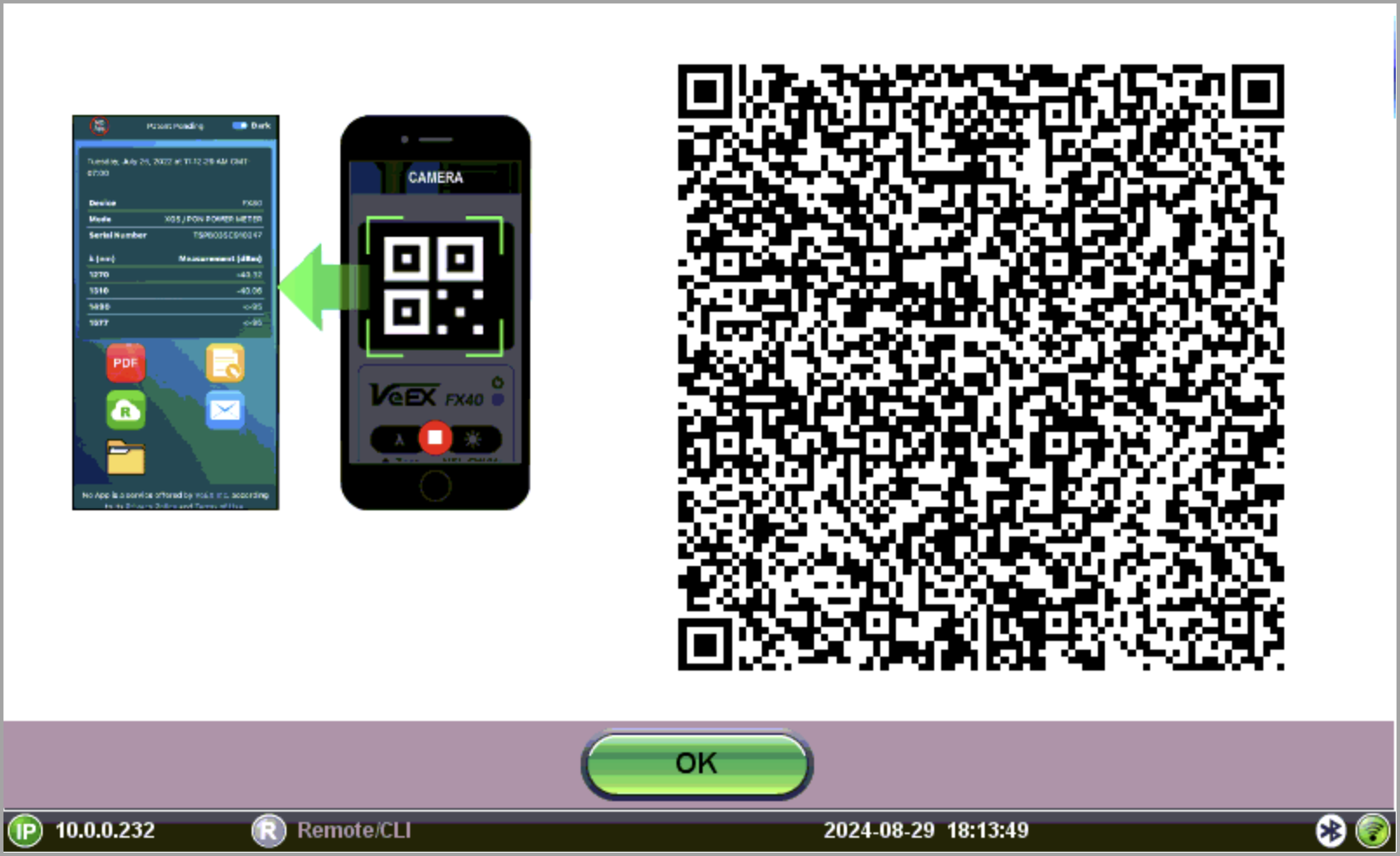

Immediately after saving results, a screen with a QR code appears. To view the test report via mobile device, scan the QR code with the mobile device’s camera. Tap OK to exit the screen on the test set.

Alternatively, tap the QR code icon on the File Manager screen.

Test Report QR Screen

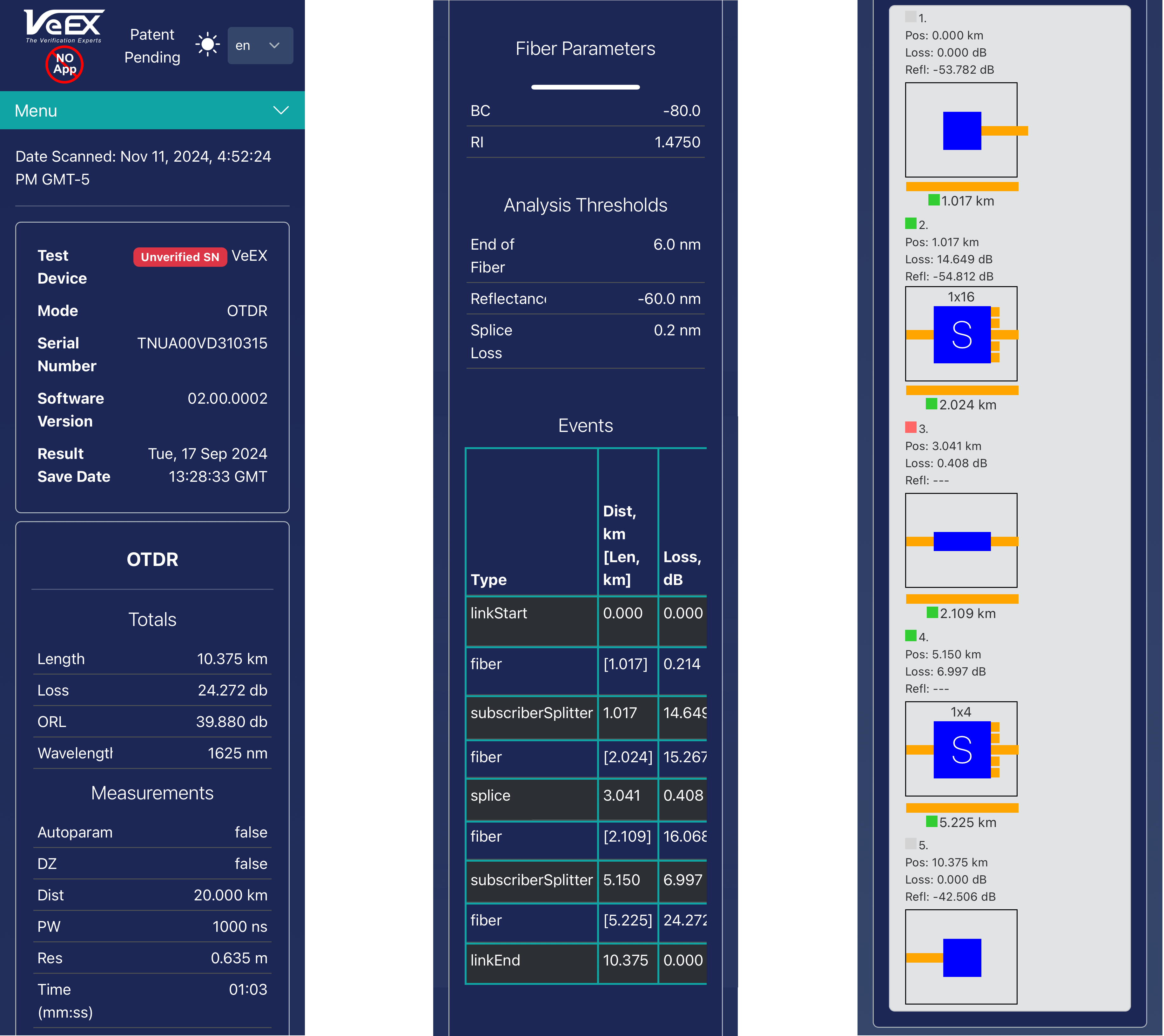

After transferring results to a mobile device via the QR reader, the browser launches automatically and displays them.

The top of the screen shows the device type, mode, serial number, and software version, and the date results were saved on the device.

Export options appear at the bottom on the screen. Alternatively, tap the Menu drop-down menu to view the options.

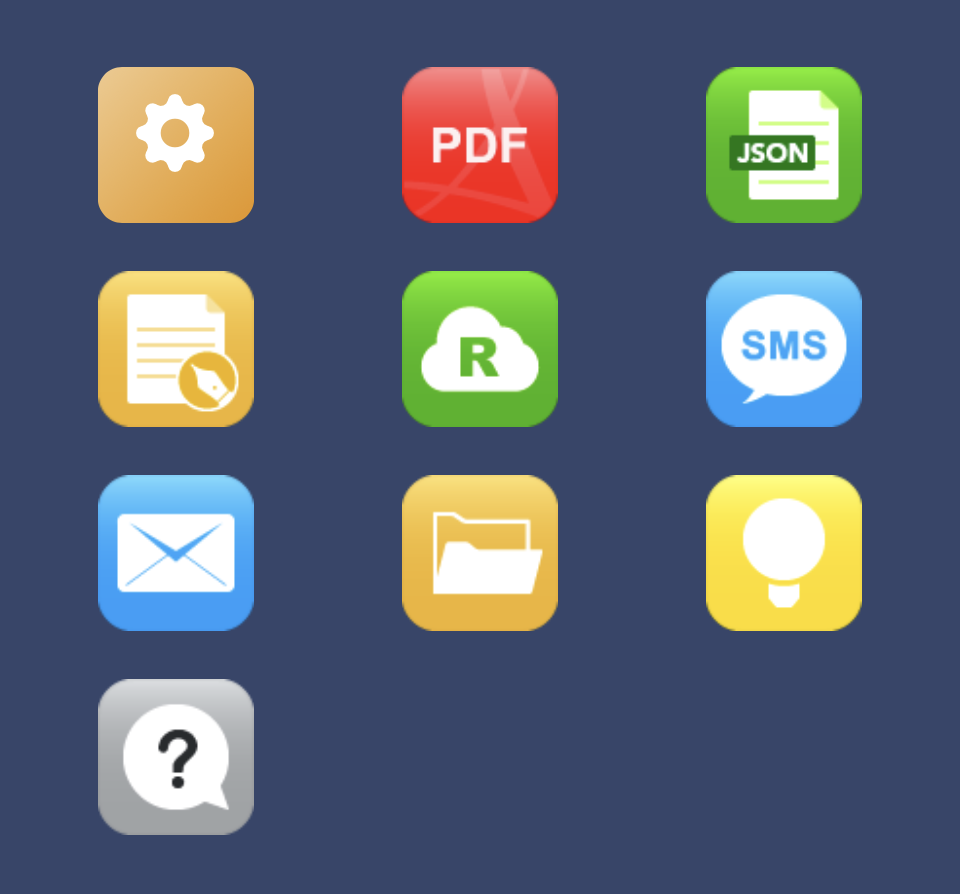

Results - Mobile View Export Options

	Adds/Removes location (GPS coordinates) from results report; customize report with logo.
	Generates complete report in PDF format, which can be shared with the customer (subscriber) or emailed to a supervisor.
	Exports to JSON format, for third-party integration or processing.
	Adds extra job-related information to the report (e.g., Job ID, tech's information, comments, pictures, etc.).
	Uploads results to R-Server (for R-Server users).
	Texts results via SMS protocol.
	Emails current test report.
	Creates a new project for results so multiple test results, from the same or different test sets, can be combined into a single job report.
	Opens knowledge base.
	Opens documentation resources for test set.
