File Manager - Results, Profiles & Screenshots

Swipe down from the top of the screen to reveal the System, Settings & Tools menu, then tap the Files button to access and manage stored test results, test profiles (configurations) and screenshots (screen capture image files). A list of stored files is displayed.

Tap Results | PCAPs | Profiles | Screens section tabs to select the type of files to be displayed. The current type is highlighted in blue. Use the / and / to sort the files in descending or ascending order, based on file name or timestamp. The provides information about the percentage of internal storage used and the number of files currently stored in each section.



Individual File Functions

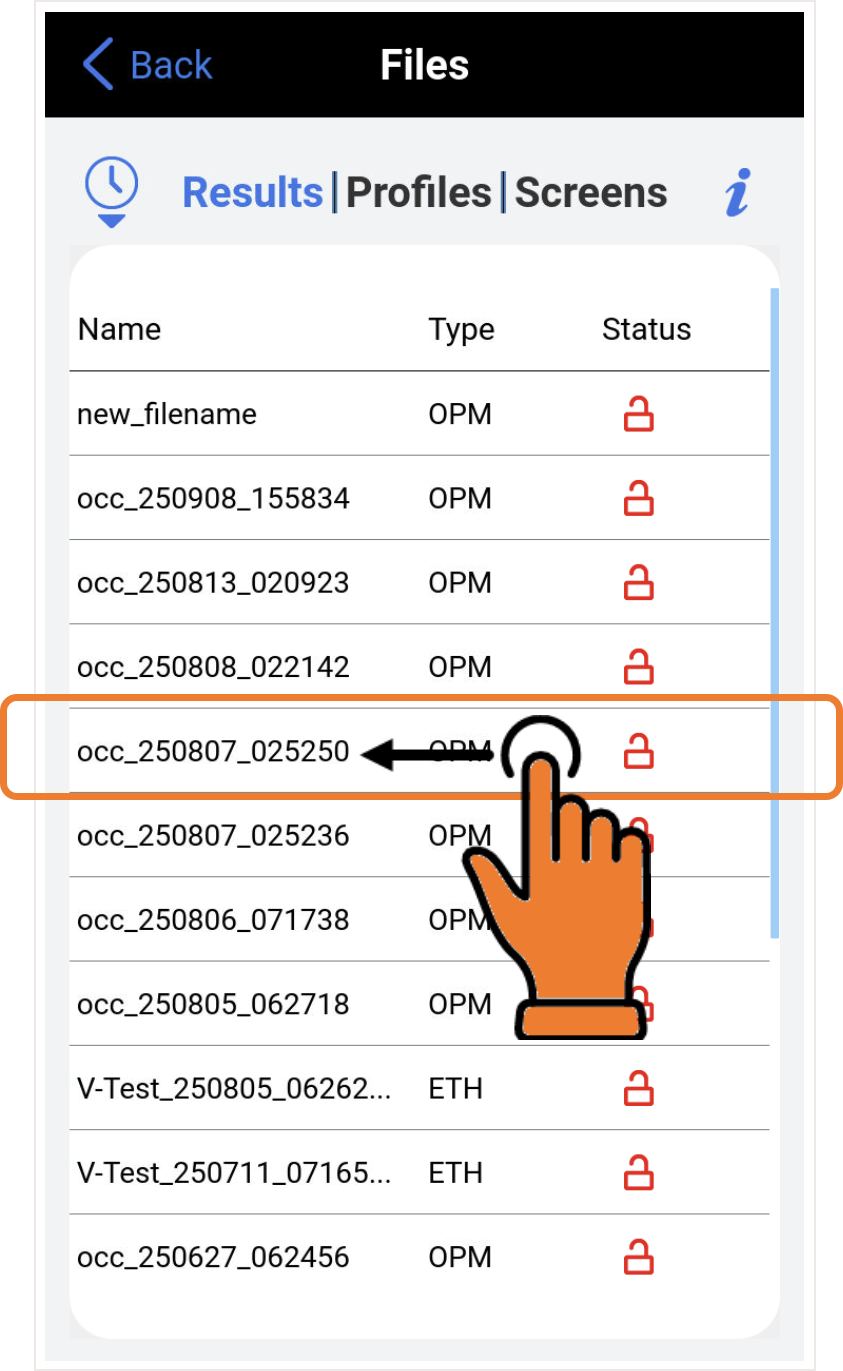

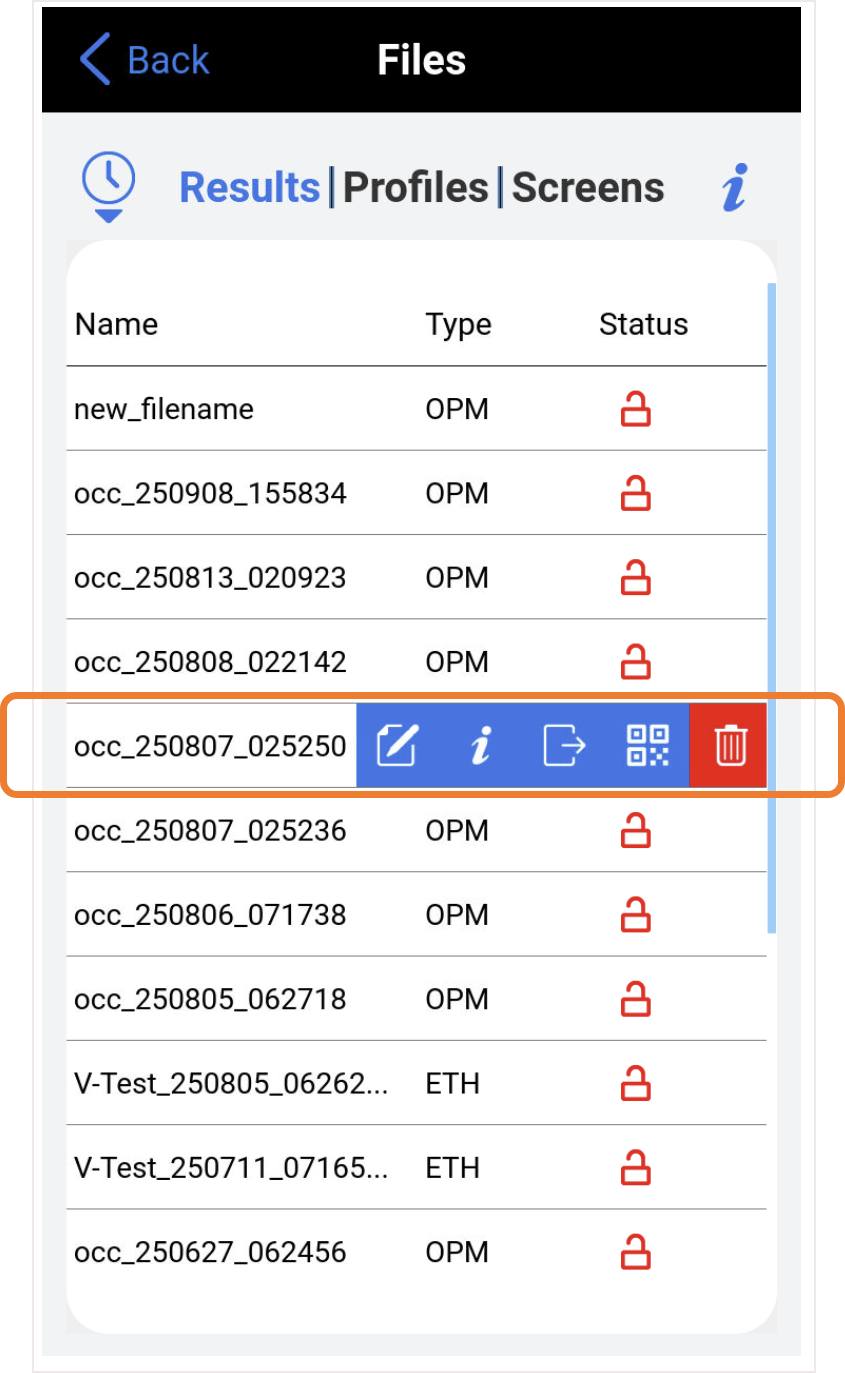

To manage individual files, select the desired file and swipe half-way to the left, to open the individual file Edit menu.



Rename - Renames file.

File Information - Shows basic test results details and Lock/Unlock function. Locked files can't be deleted.

Transfer File - Shares file to a Bluetooth device (paired), attached USB memory stick, or to a registered (backup) R-Server (Cloud Services).

Generate QR Code - Transfers test results to mobile device with NoApp® cloud services. (QR generation must be enabled in Global Settings.)

Use NoApp®Closed NoApp® is a Registered Trademark of VeEX Inc. Its methods and procedures are protected under US Patents 12,190,199 B1 (QR code) and 12,321,807 B1 (NFC). to transfer test result data, generate, upload and share test reports, via QR Code and NFC.

Delete individual file - Deletes file. Files can be locked to prevent accidental deletion. To lock a file, swipe right on the file, select and turn on the lock feature for the file.



Multi-File Functions

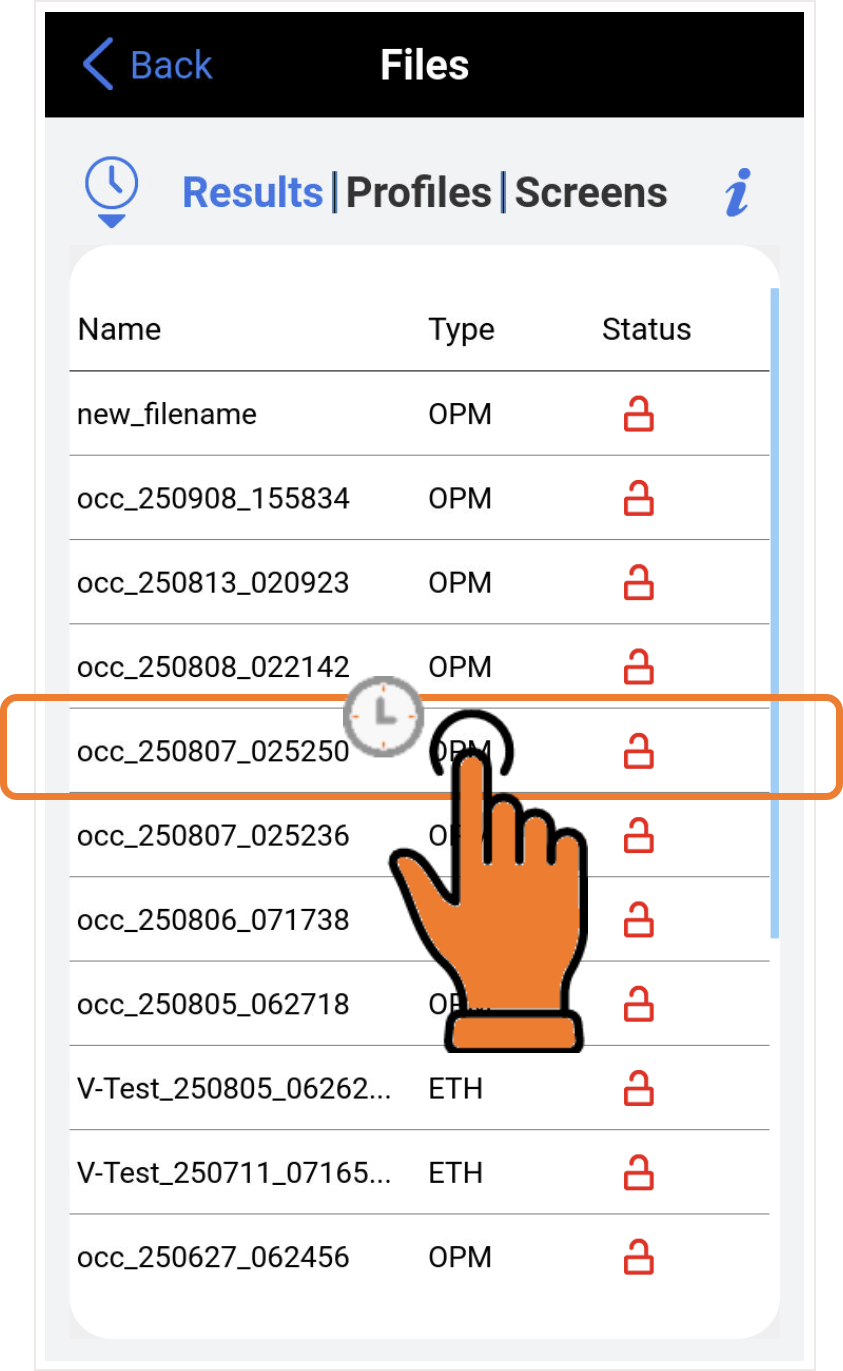

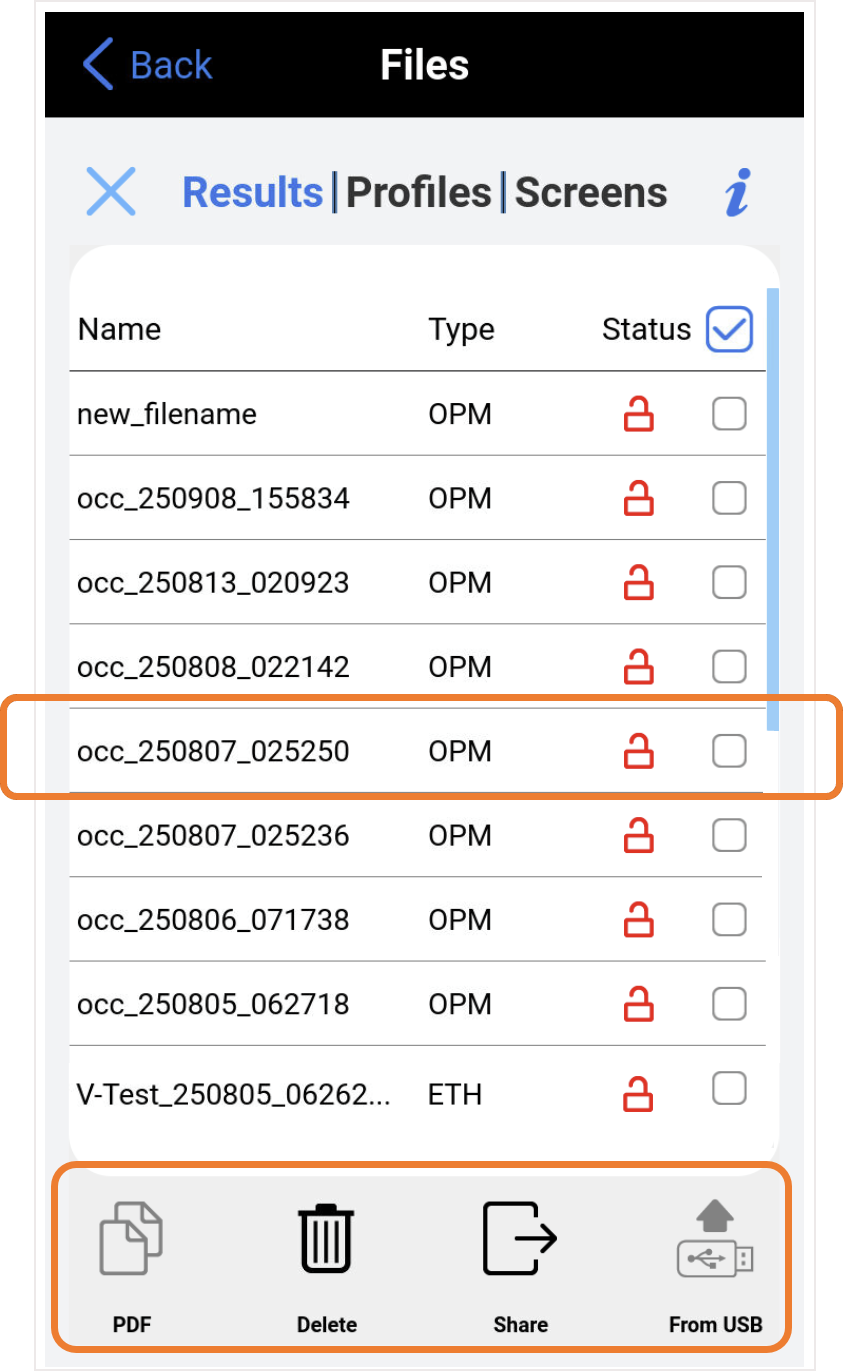

Touch and hold one of the files to access the multi-file functions, select the files to apply, then select an option at the bottom. Tap Close when finished. There must be at least one file stored in the test set for this to work.

PDF - Generates a PDF copy of the file and stores it in an attached USB memory stick (required).

Delete - Deletes all unlocked test reports that are selected with checkmarks.

Share - Shares selected files to a paired Bluetooth device, attached USB memory stick, or a registered R-Server (Cloud Services).

From USB - Restores (loads) previously exported test results, profiles and screenshots from an attached USB memory stick.
