Autosave Parameters

Use Autosave to save results automatically with default information in the filename. On the OTDR Setup screen, press Autosave to open the Autosave Parameters window.

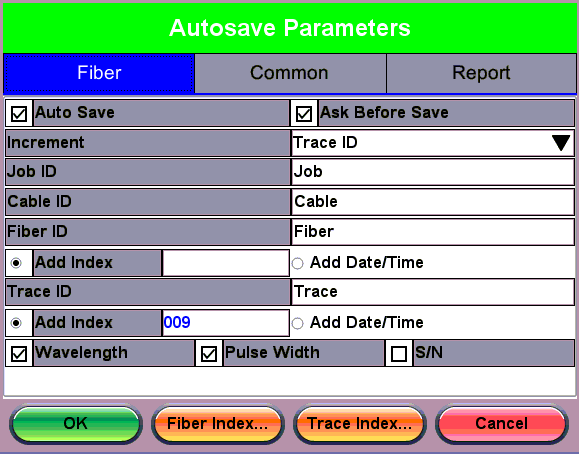

OTDR Setup: Autosave Parameters - Fiber



Auto Save: To enable/disable autosave. Disabled, Enabled, Enabled+Report or Enabled+V-Scout Report. (Choose the Report options to be able to export results to PDF.)

Ask Before Save: Check this to be prompted to save after measurement is completed.

The following information can be pre-set to create a name and increment fiber or trace number automatically. The filename will begin with the Index value, Trace ID, Wavelength, Pulse Width, and S/N, if checked.

• Increment: Choose to increment Fiber ID or Trace ID (recommended).
• Job ID: Select the field to enter a default value that will be included in the filename.
• Cable ID: Select the field to enter a default value that will be included in the filename.
• Fiber ID - Select Add Index to auto-increment or select Add Date/Time. The filename will include details entered in this field automatically. The fiber count can be incremented in Trace ID or Fiber ID.
• Add Index (Fiber): Test counter. When saving test results, count auto increments and is added to filename. To change the value, click Fiber Index and select Force to enter a specific value or Reset to reset the counter.
• Trace ID - Select Add Index to auto-increment or select Add Date/Time. The filename will include details entered in this field automatically. The fiber count can be incremented in Trace ID or Fiber ID.
• Add Index (Trace): Test counter. When saving test results, count auto increments and is added to filename. To change the value, click Fiber Index and select Force to enter a specific value or Reset to reset the counter.
• Wavelength: Includes test wavelength used for each trace.
• Pulse Width: Includes pulse width used for test.
• S/N: Includes test unit serial number.

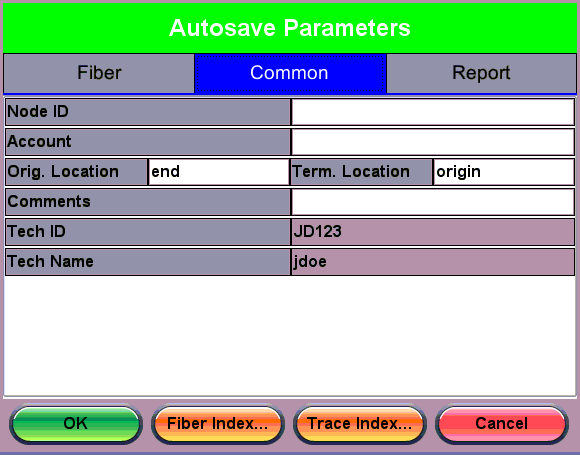

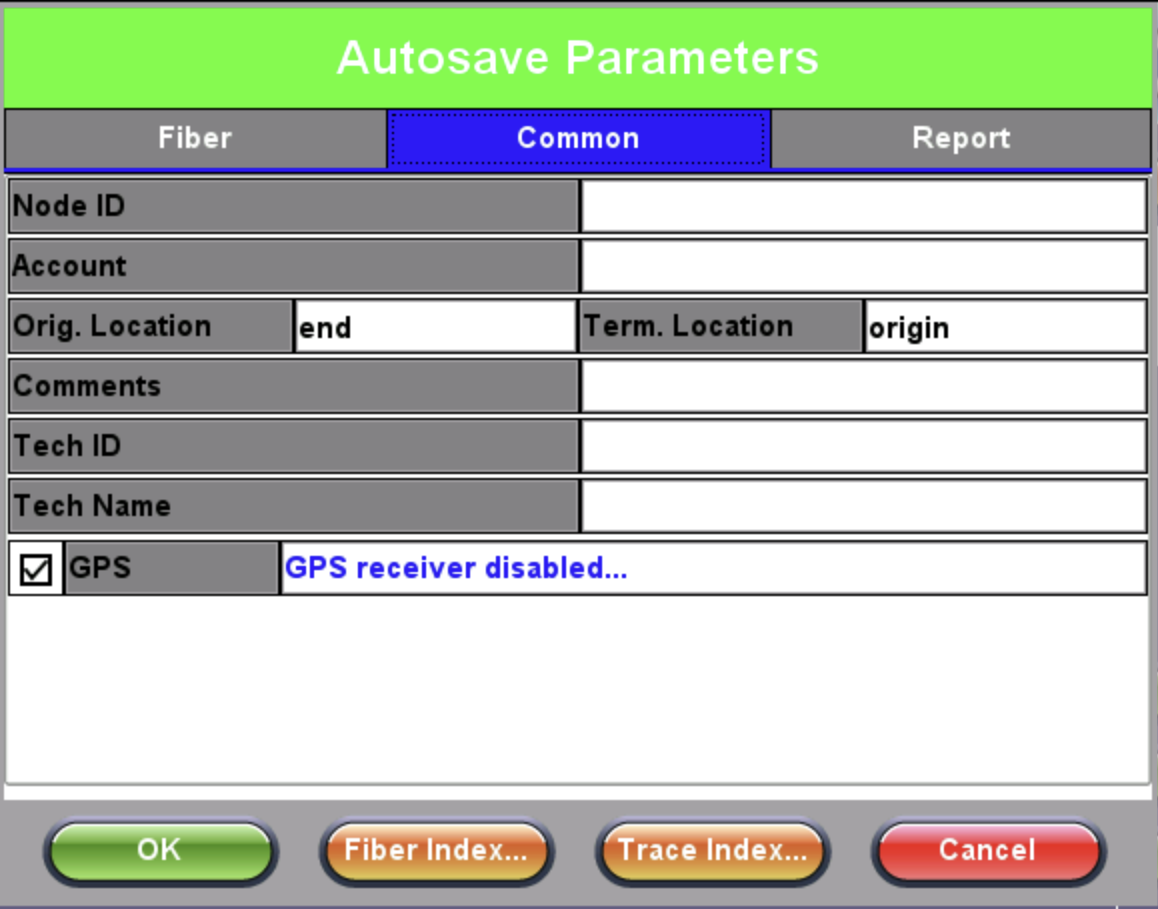

OTDR Setup: Autosave Parameters - Common



The following information can be pre-set and automatically saved in the file.

• Node ID: Node ID
• Account: Account number
• Orig. Location: (Originating location) where fiber starts
• Term. Location: (Terminating location) where fiber ends
• Comments: Add information about the fiber ends, comment about the result, status or any other meaningful information about connector, application, or case. This information will be included in the report.
• Tech ID: Operator ID (automatically populated when synchronized with R-Server)
• Tech Name: Operator name (automatically populated when synchronized with VeSion® R-Server)

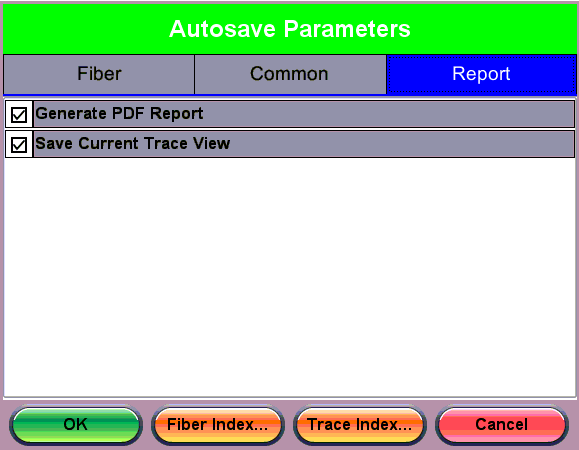

OTDR Setup: Autosave Parameters - Report



• Generate PDF Report: Check to generating a results report in PDF automatically. The PDF report can be exported from the File Management option. Refer to Working with Saved Results, Profiles, Images for details.
• Save Current Trace View: Saves the current trace to the PDF report.
